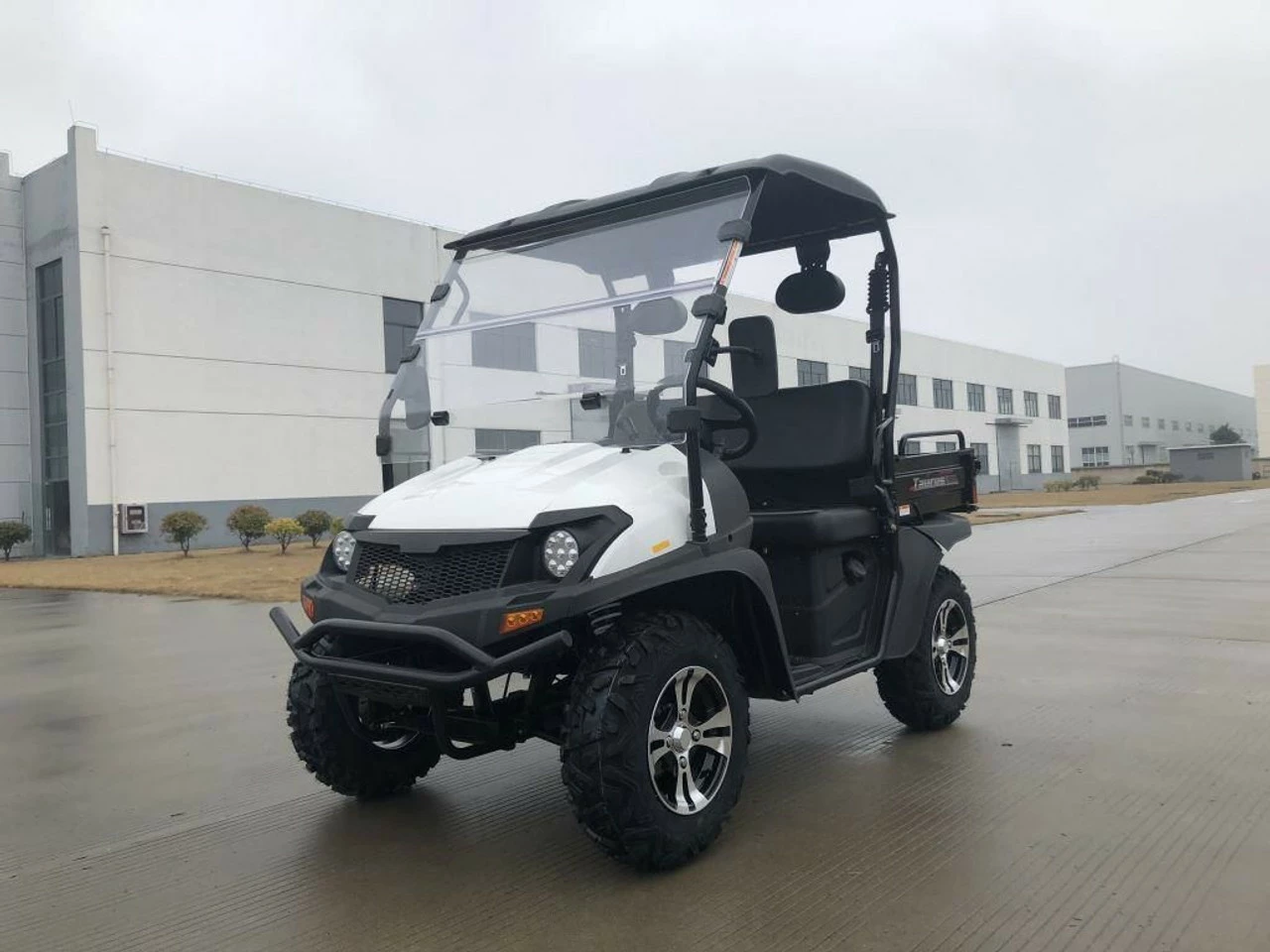

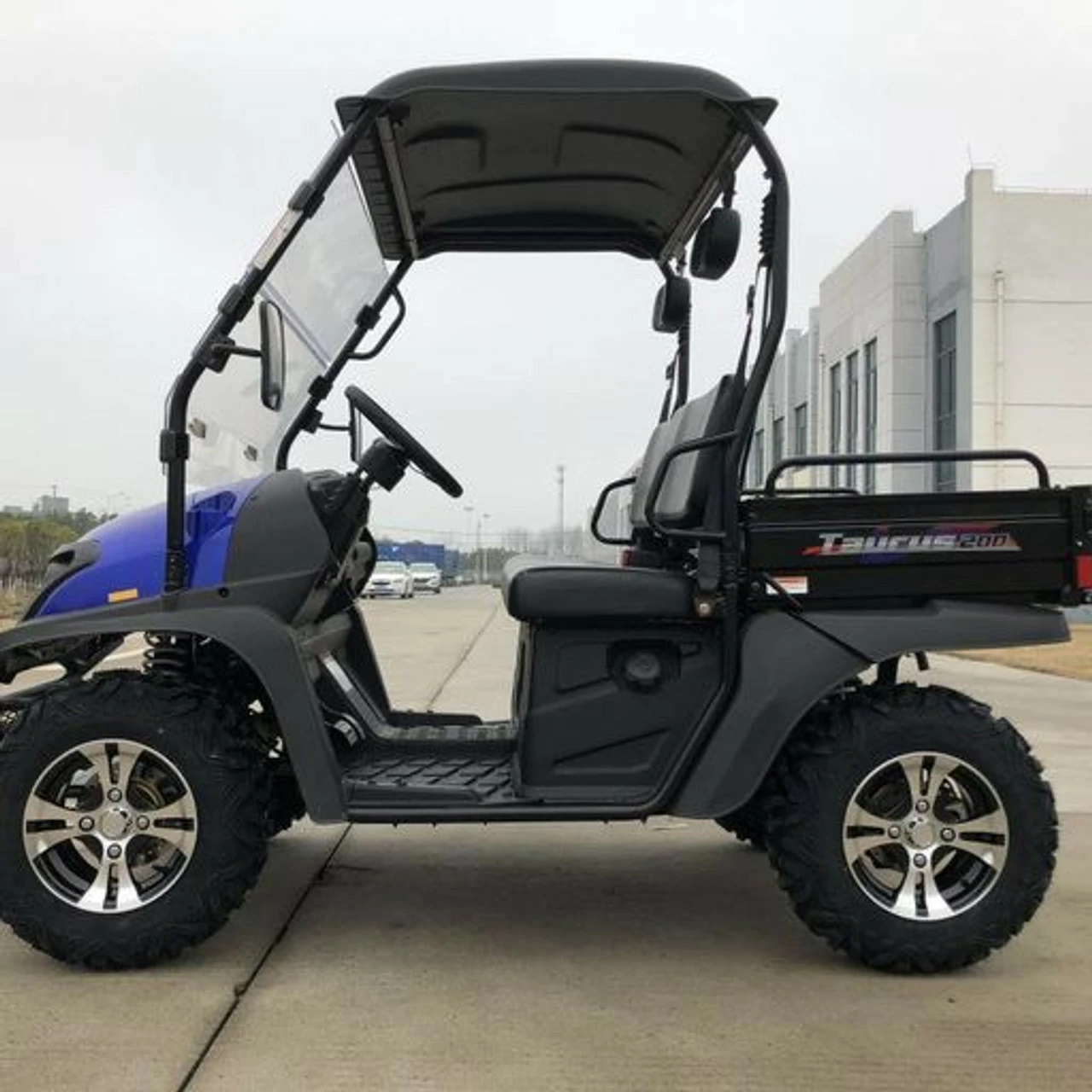

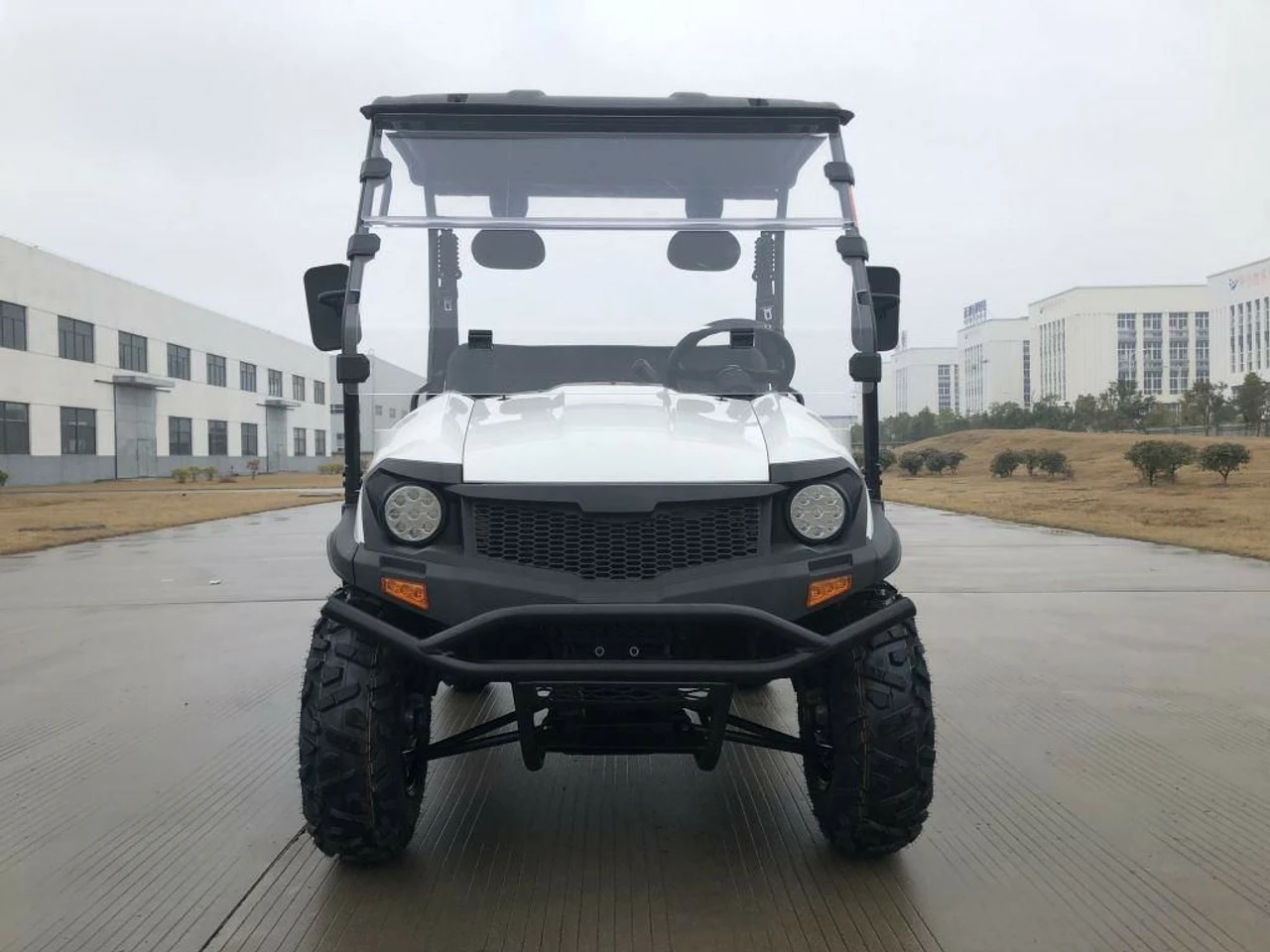

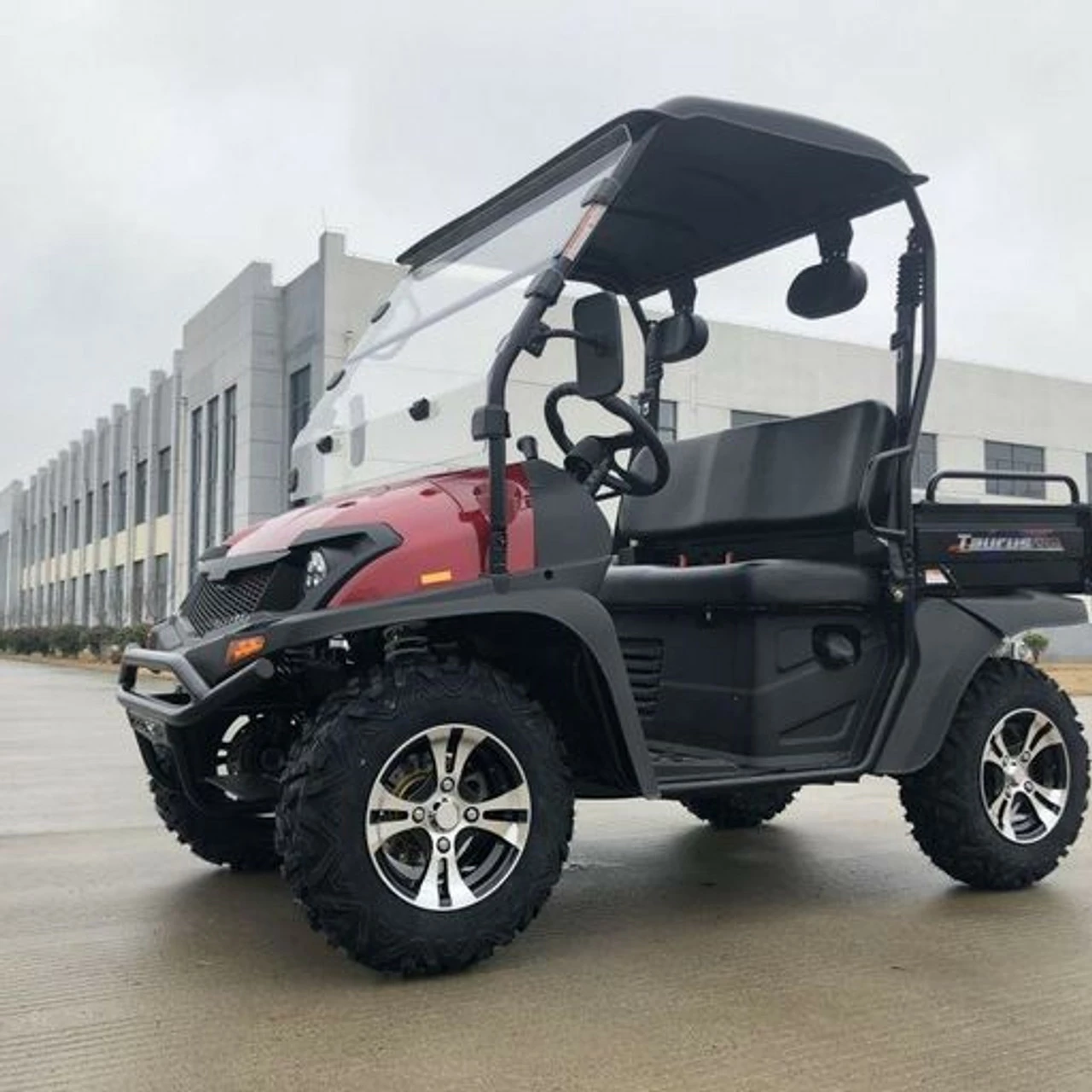

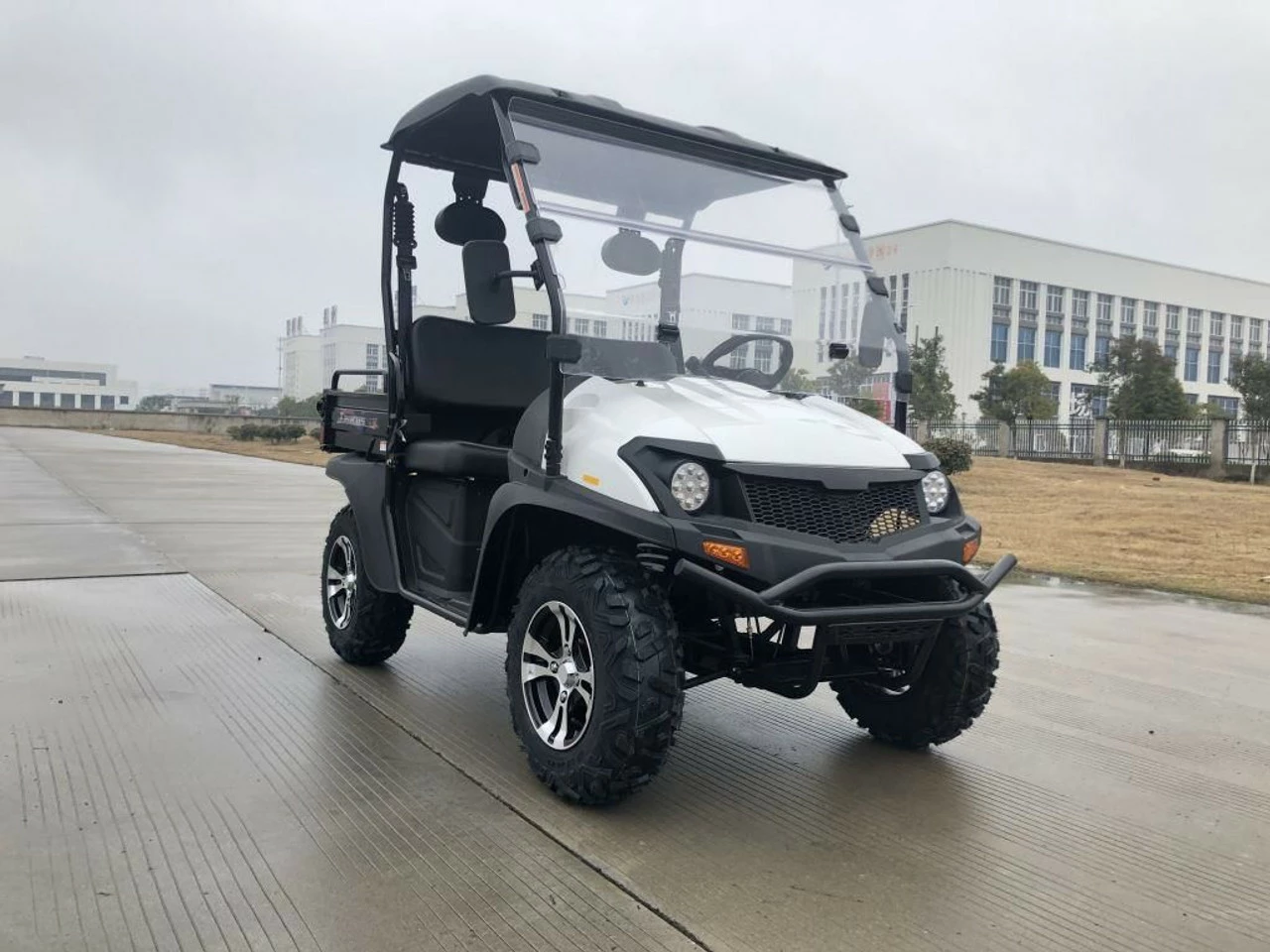

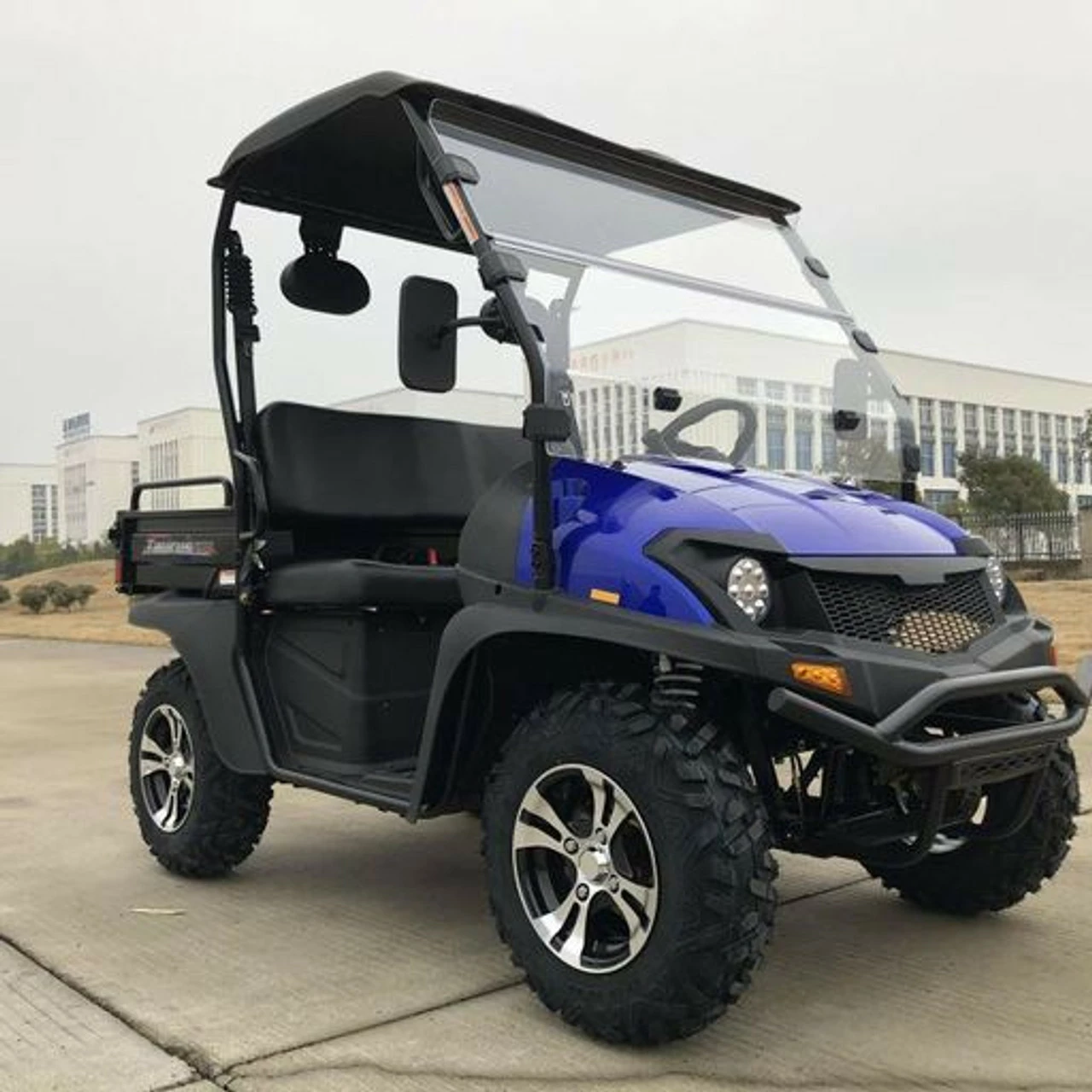

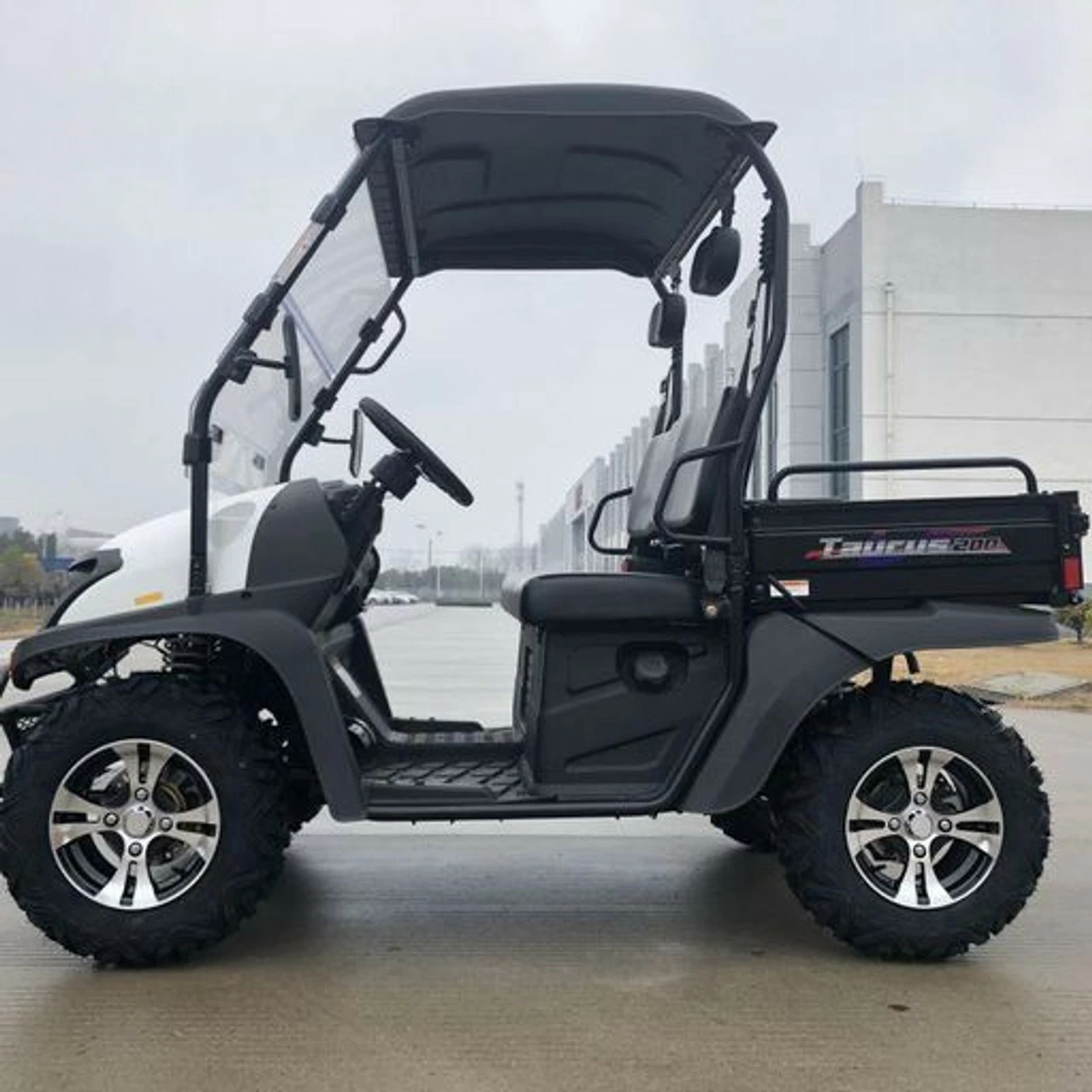

TrailMaster Taurus 200U UTV

The Taurus 200U utility side by side is equipped with a 9.5 HP air and oil cooled high performance 177cc GY6 engine with internal reverse set up. It comes standard with a H/L gear. The low gear mode has a 40% better climbing ability than the non H/L version and can climb 30 degree slopes with ease. The Taurus 200 has significantly greater torque than the non H/L gear machines and is equipped with 4 wheel independent suspension for optimal driving.

Taurus 200U Key Features:

• Equipped with heavy duty steel dump bed
• Equipped with H/L gear, low gear mode has 40% better climbing ability than the non H/L version & can climb up to 30 degree slopes with ease.
• Air and oil cooled high performance 177.3 cc GY6 engine with internal reverse set up, with rear shaft direct drive, more reliable power transmission, higher transmission efficiency;
• Four-wheel independent suspension for much better driving experience
• Heavy duty frame, net weight 828 lbs, max load 600 lbs
• Digital dashboard
• LED Hi/Lo head lights
• Rear view side mirrors
• Sporting steering wheel
• Turn signals
• Retractable safety seatbelt
• Big aggressive off road tires: F / R: 24 x 8-12 / 24 x 8-12
• Polished aluminum wheels
• Hard top
• Steel front bumper
• Cup holder
• 12-V outlet
• Adjustable heavy duty front and rear shock absorber
• Front and rear hydraulic disc brake
• Large gas tank
• Horn

Engine Information

• EPA Certificated

• Engine Type: 4-stroke, single cylinder, air and oil cooled

• Displacement: 177.3cc

• Compression Ratio: 8.8:1

• Max HP: 9.5HP

• Bore & Stroke: 62.5X57.8 mm

• Max Torque and Crankshaft Speed: 11.0/4500 N.m/(RPM)

• Nominal Power and Crankshaft Speed: 6.5/6500 kw/(RPM)

• Max Speed: 25mph

• Climbing Ability: 30 degrees

• Ignition: C.D.I

• Starting System: Electric

• Battery: 12V 9Ah

• Carburetor Brand: Deli

• Engine Oil: SAE 15W/40 General Information

• Transmission: Auto, L-H-N-R

• Drive Train: Shaft Drive; 2 WD:

• Drive Mode: Rear Shaft Drive, Rear differential

• Suspension, F/R: Front MacPherson, Rear Dual A-ARM

• Brakes, F / R: Both hydraulic brakes, Disc

• Tires, F / R: 24 x 8-12 / 24 x 8-12

• Fuel Tank Capacity: 4.8 gallons

• Wheels: Aluminum

• Weight, Gross 1018lbs/ net 828 lbs

• Max Load: 600 lbs

• Dump Bed Capacity: 220 lbs

• Towing Capacity: 200 lbs Dimension Information

• Wheelbase: 63”

• OA L x W x H: 108”x54”x74”

• Seat Height: 33”

• Min Ground Clearance: 11”

• Bump Bed: 26.4”X43.4”X9.5”



*Unit will ship out mostly assembled.  You will be responsible for attaching the top roll cage, steering wheel, and installing the battery.

*Shipping Only to Lower Contiguous 48 United States, Excluding California
