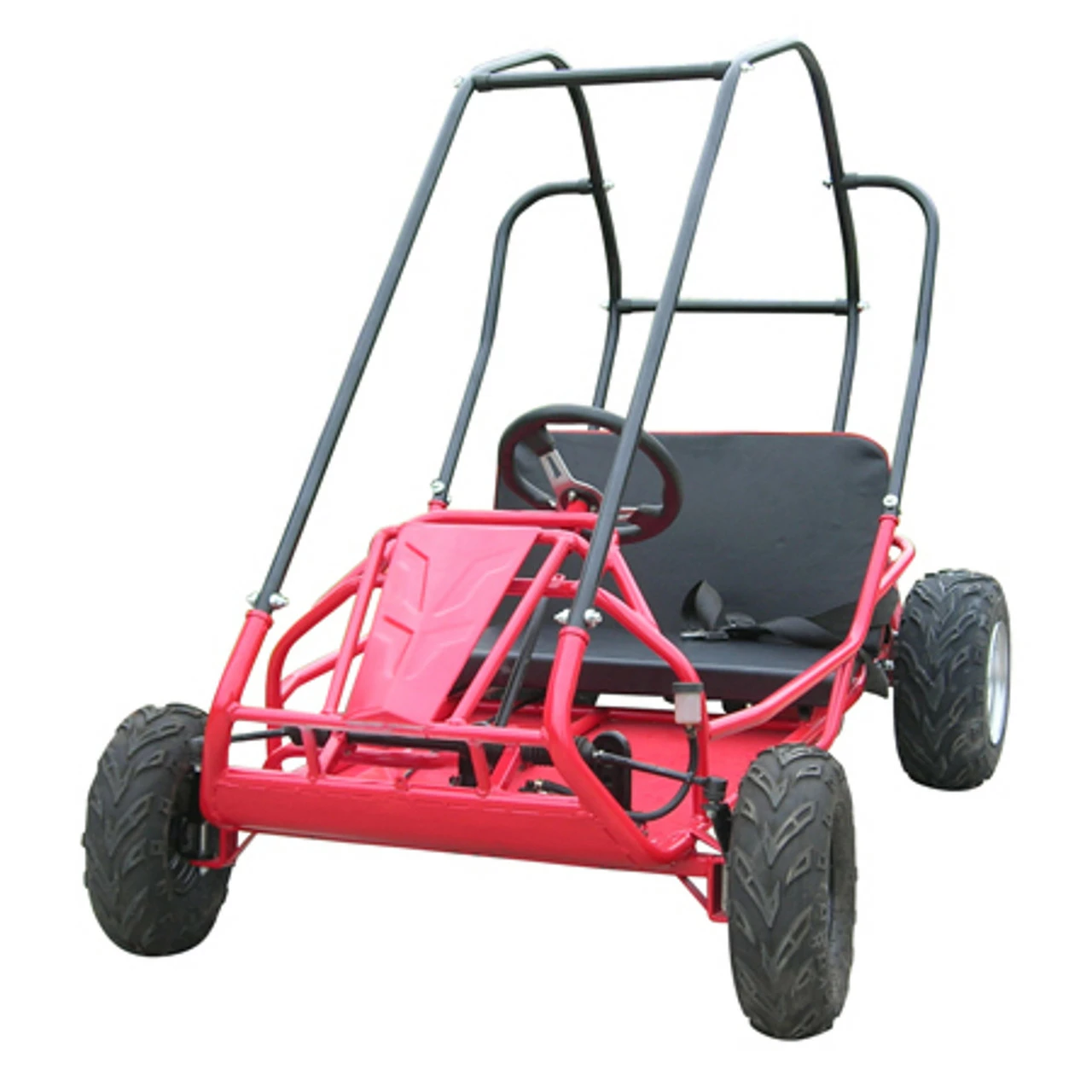

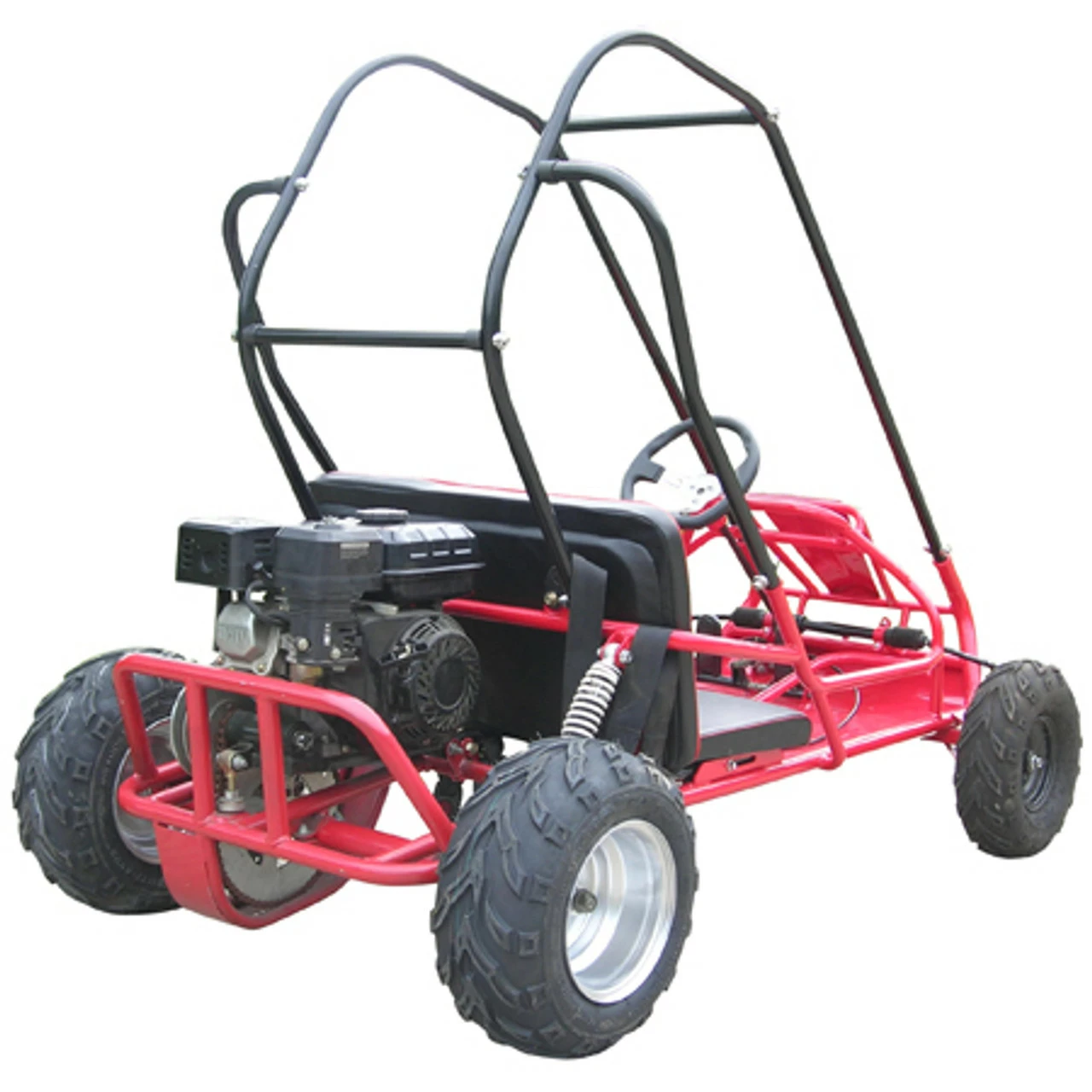

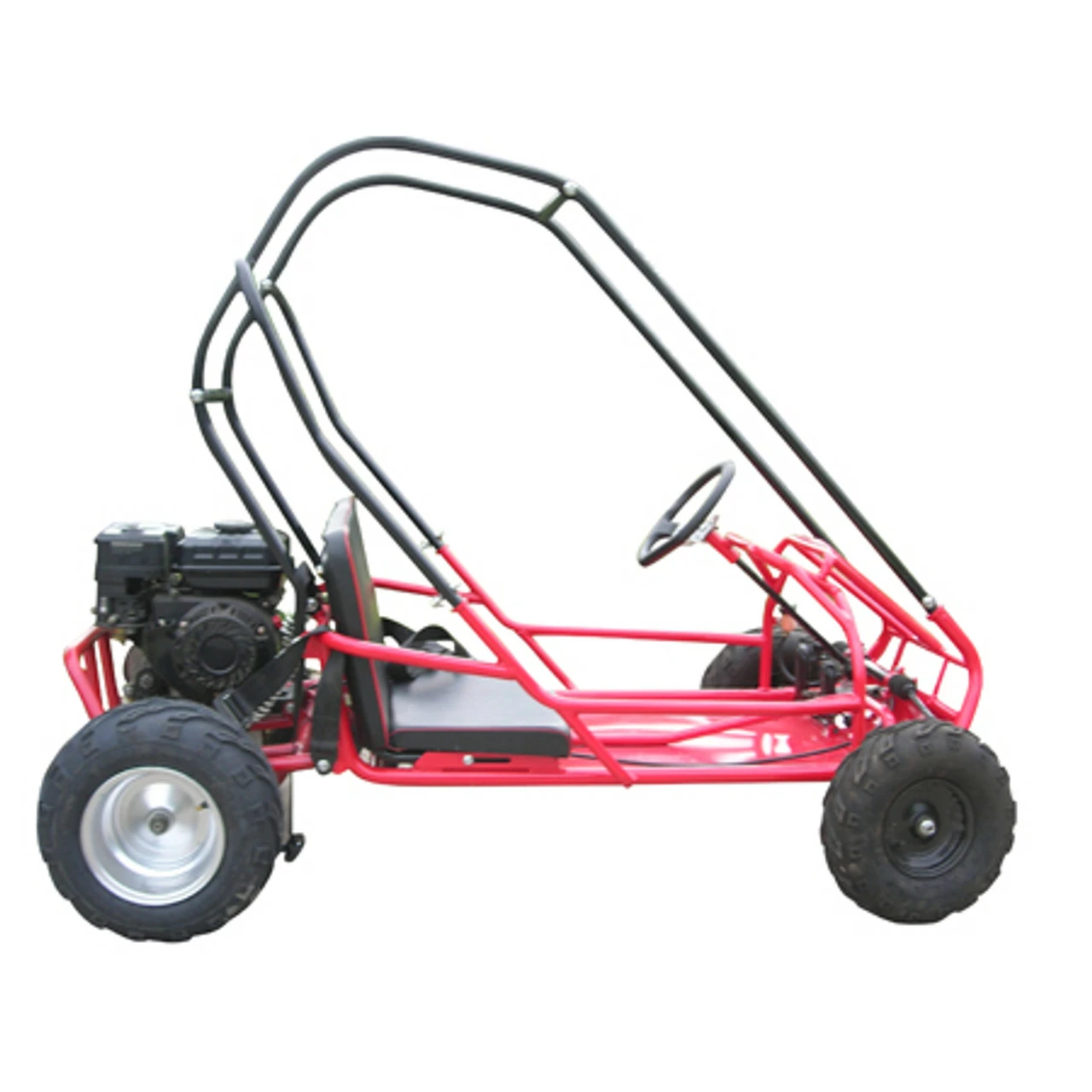

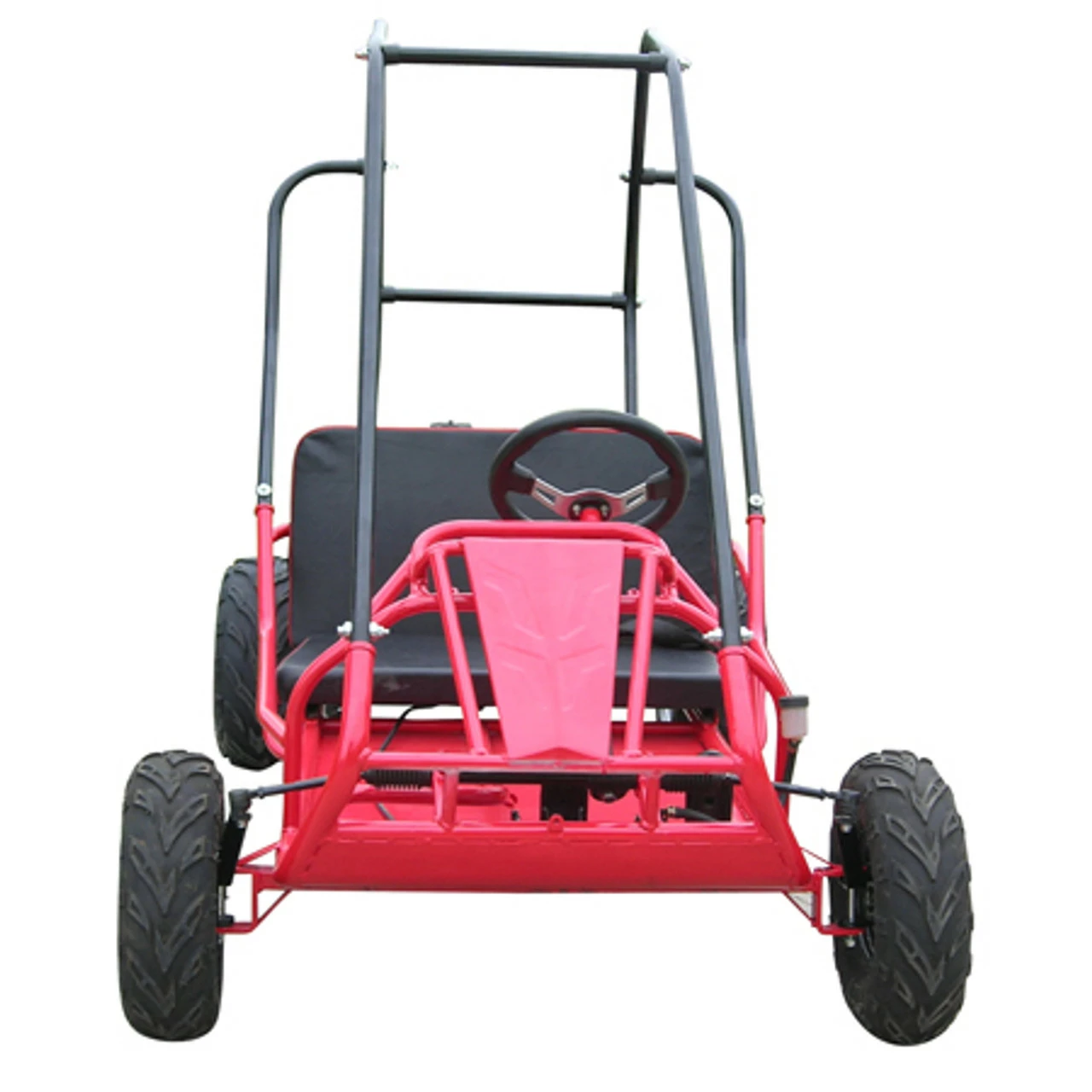

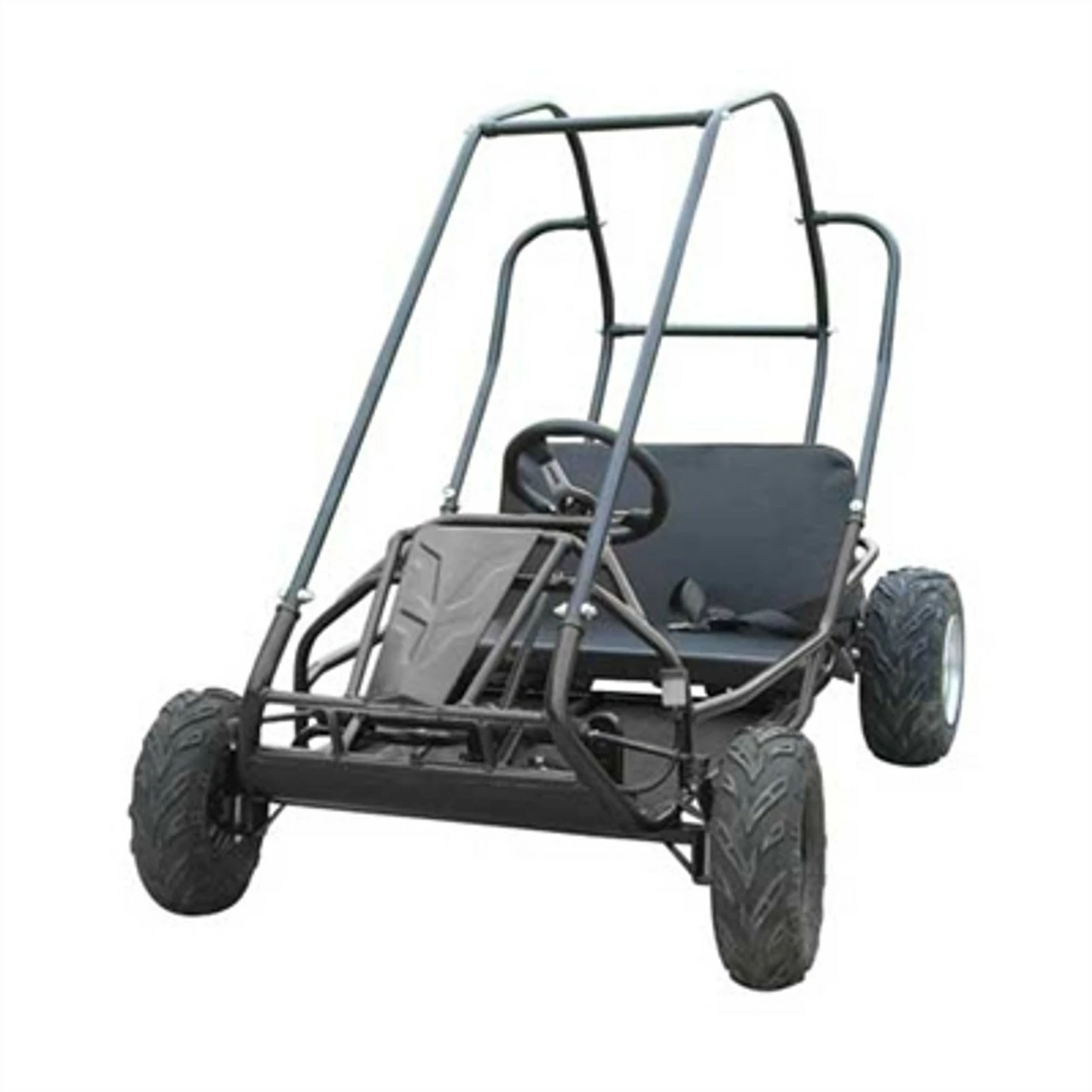

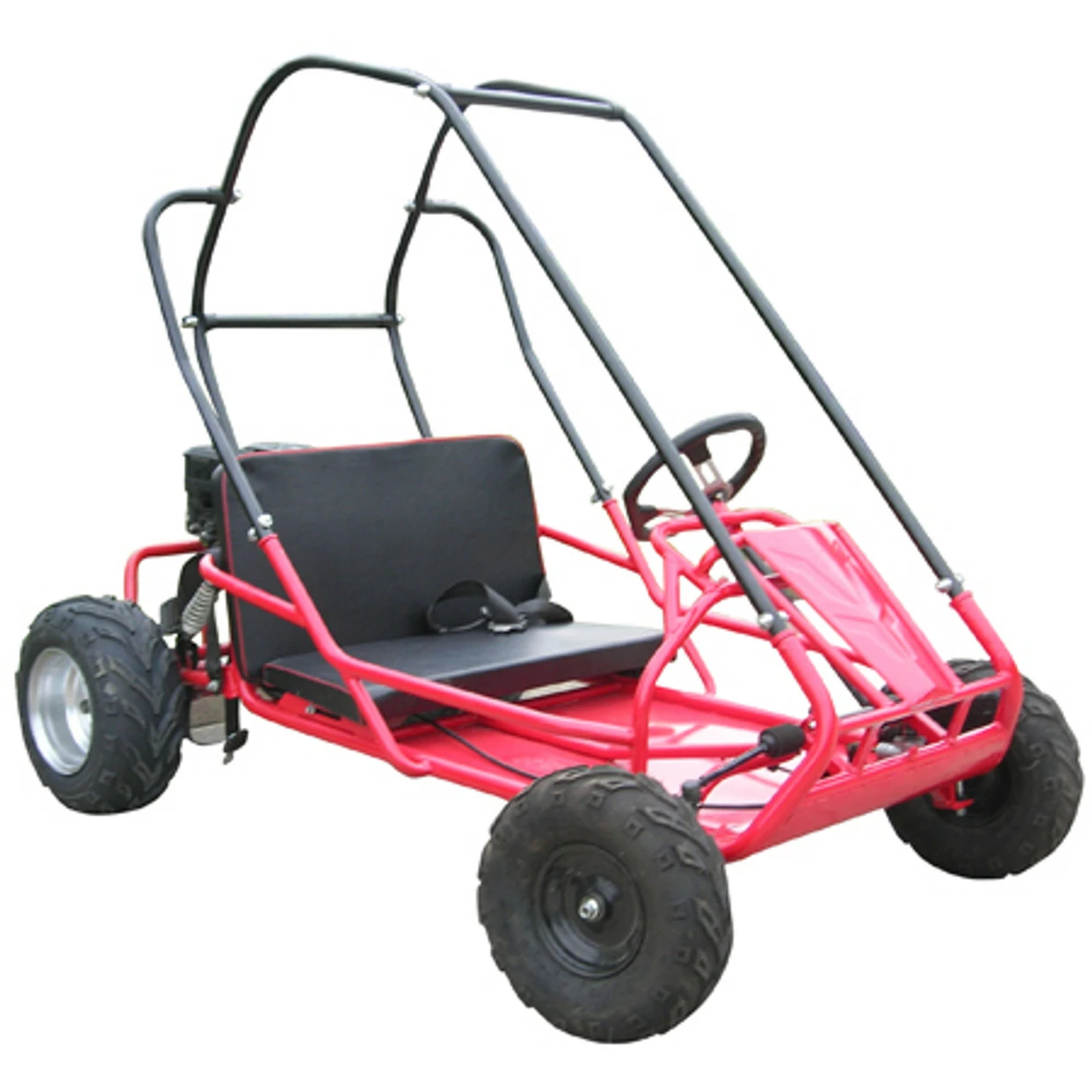

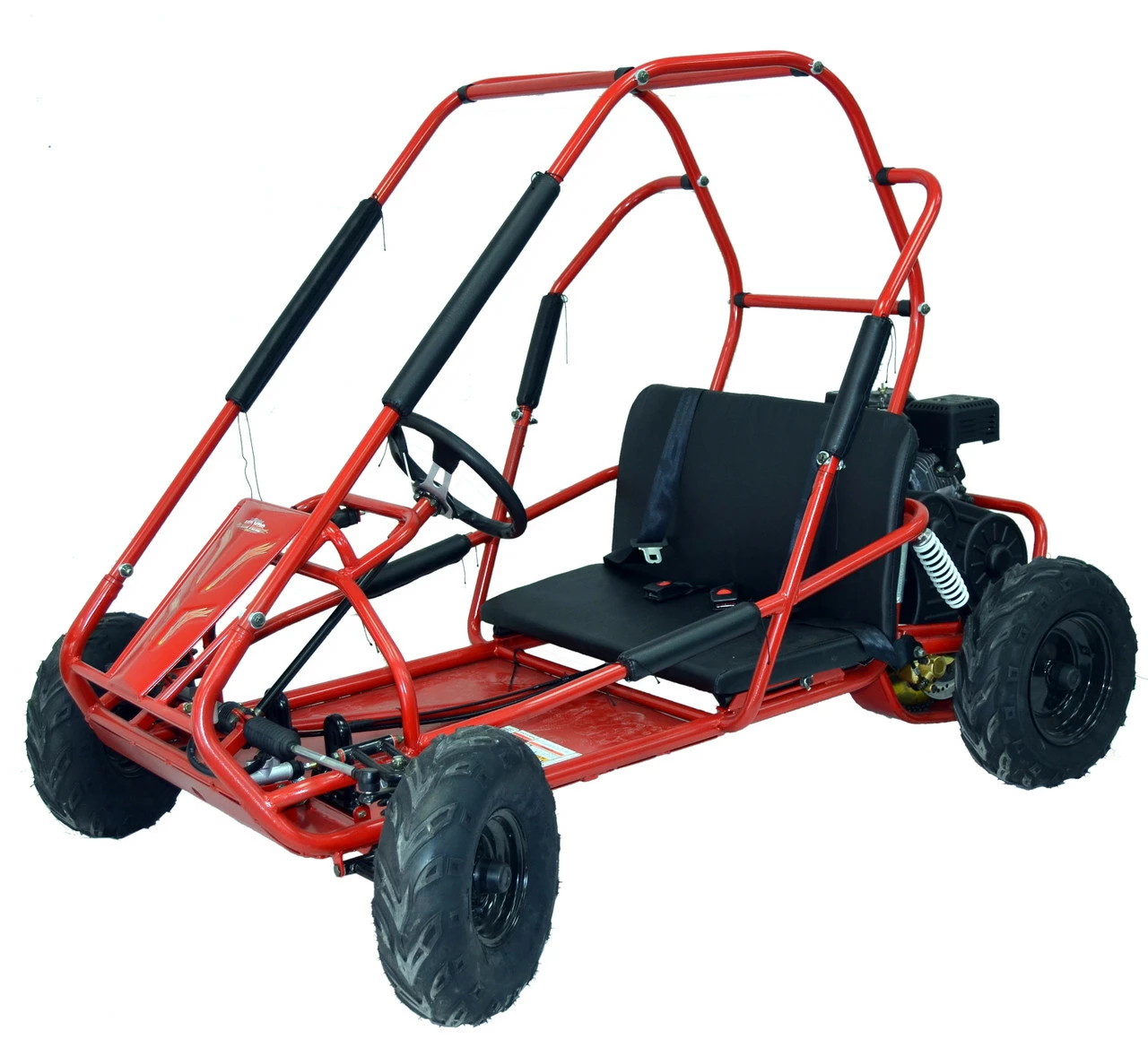

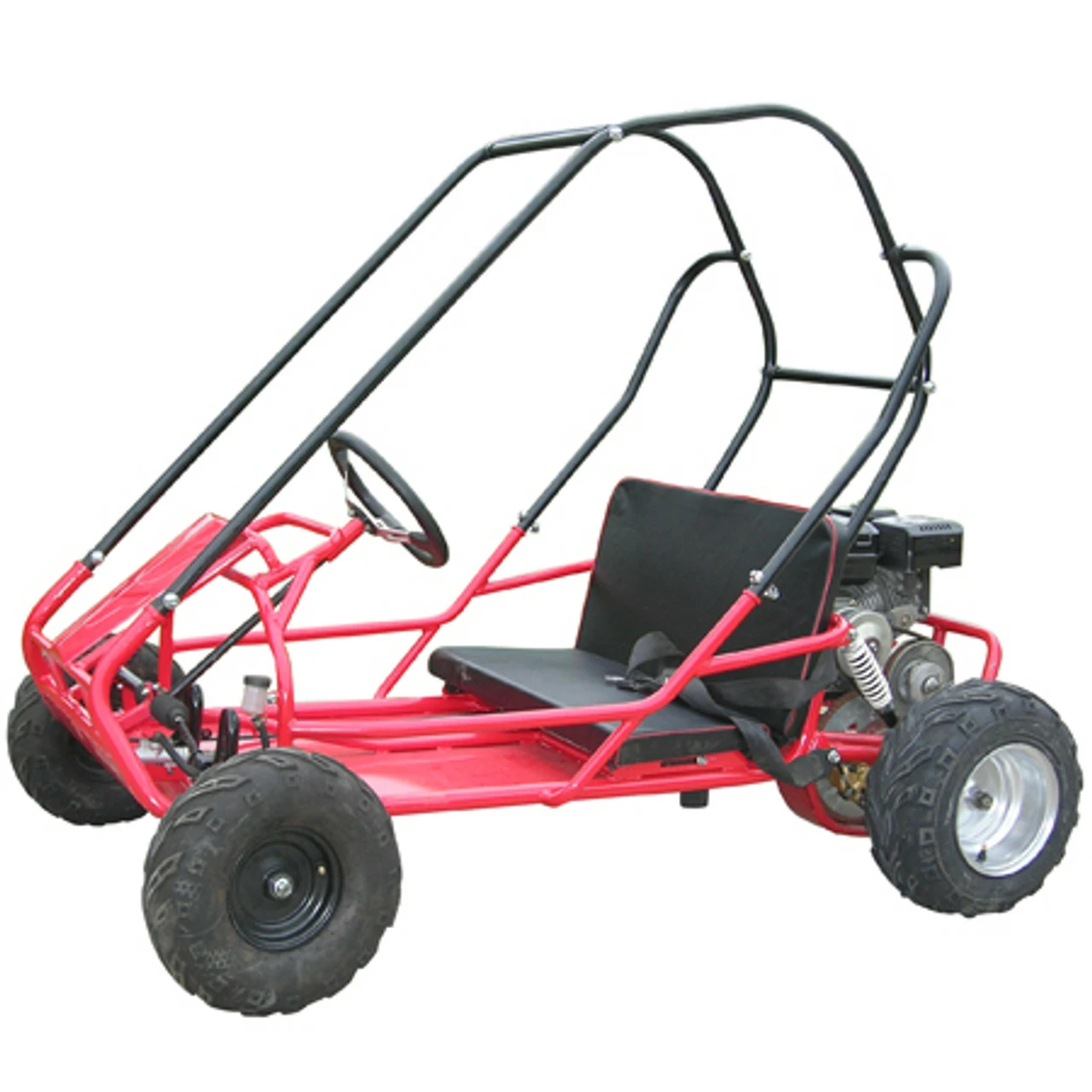

TrailMaster MID XRS Go-Kart

There’s nothing better for beginners than this TrailMaster MID XRS. This isn’t because the go-kart is more simplistic in its speed or design, but largely due to the fact it requires very little maintenance from the rider. Simply fuel up and get ready to enjoy yourself.

The TrailMaster MID XRS has a strong and durable frame which really helps it compete with some of the tougher terrains out there. You’ll be able to navigate through everything from brush to loose gravel, which will always keep your trail choices open.

This model is designed to let you go up to 25 MPH and has a climb range of 12 degrees, which is perfect for most trails. The simple design will also give you a lot more flexibility when it comes to navigation as you’ll be able to turn easier while still protecting you from overhead brush.

The beauty of this go-cart is certainly in its design thanks to the four stroke engine and automatic CVT. The go-kart features a manual pull start which is slightly different from TrailMaster’s other models, but still an efficient and convenient way to go. This model also features a double oil damped shock and hydraulic brakes which will make the ride smoother and safer for all.

If you selected “Mostly Assembled In Crate”, your kart will arrive partially assembled.  The only thing left for you to do is put on the top roll cage and steering wheel.

TrailMaster Go Karts only ship to the lower 48 states in the US.

Warranty
Yes most karts come with a limited warranty against manufacture defects. These are defects from the manufacturer not due to accidents, abuse or lack of maintenance. Go-karts come with a parts only warranty( there is no labor warranty).

Final assembly and maintenance does require some basic mechanical knowledge. Before purchasing it is wise to consider your abilities to perform the needed maintenance and repairs that will be required.

Parts Breakdown

Set Up

Engine Information
Engine type:	4-stroke, single cylinder, air cooled
Displacement:	200cc
Max HP:	6.3hp/3600rpm
Max torque:	9.6 lb ft/2500rpm
Bore x stroke:	2.6 x 2.1 inches
Max speed:	25mph
Climbing ability:	12 degrees
Ignition:	C.D.I
Starting system:	Manual Pull Start
Battery:	12V 9Ah only by Electric Start
Carburetor brand:	JF (RX)
Engine oil:	SAE 15W-40
General Information
Clutch:	Automatic CVT
Driveline / Driving wheel:	Chain / Dual wheel drive
Suspension, F / R:	– / Double Oil Damped Shock
Brakes, F / R:	No / Hydraulic brake, Disc
Tires, F / R:	145/70-6 / 16×6-8
Fuel capacity:	1 gal
Weight, G.W. / N.W.:	386 / 330 lbs
Max load:	400 lbs
Dimension Information
Wheelbase:	48.4 inches
OA L x W x H:	67×43.3×51.2 inches
Height to seat:	10.2 inche
Min ground clearance:	2.8 inches
Pedal to seat back distance:	31.5 to 34.5 inches
Configurations And Specifications Subject To Change Without Notice. ”BV POWERSPORTS, LLC”
