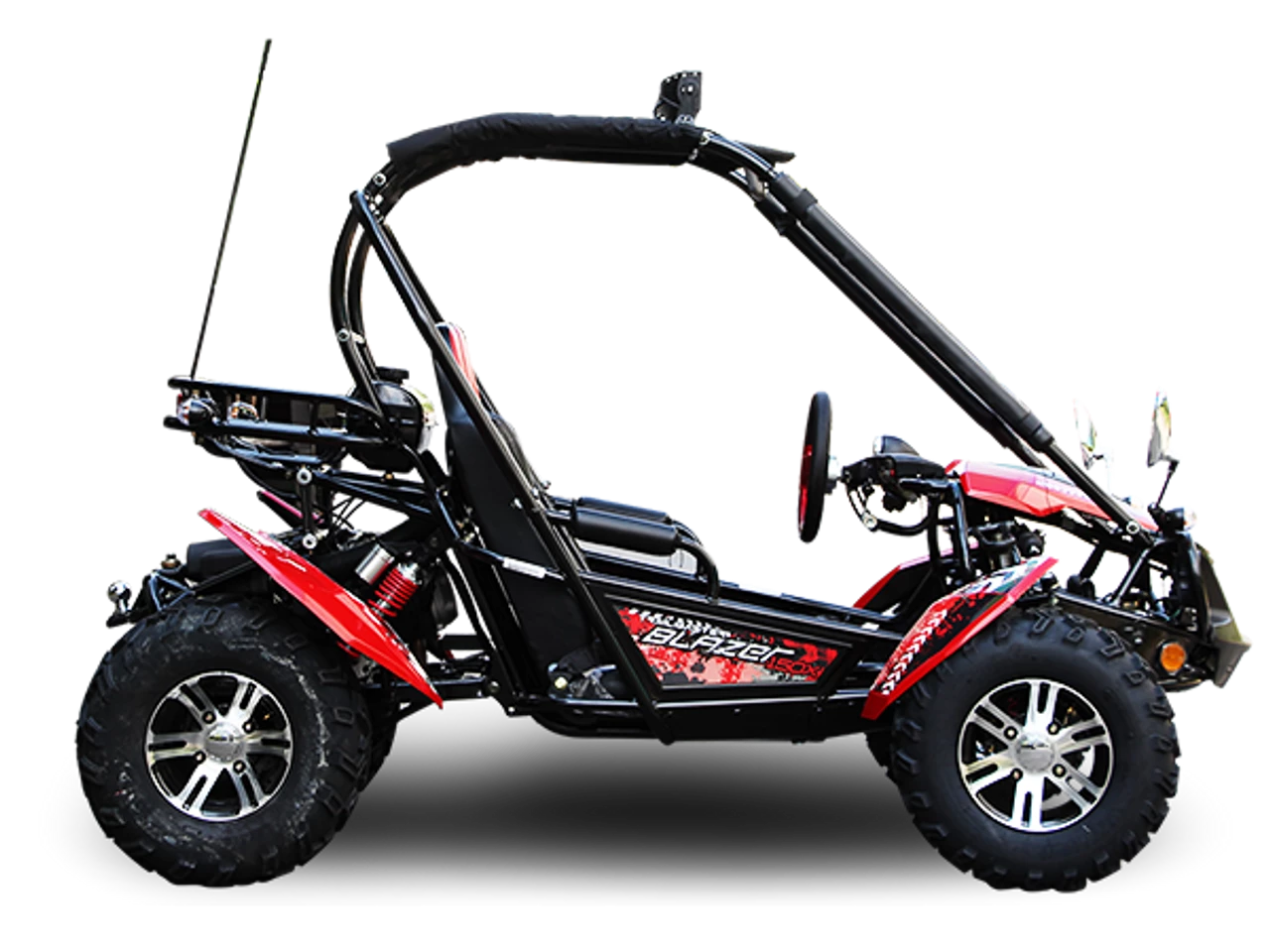

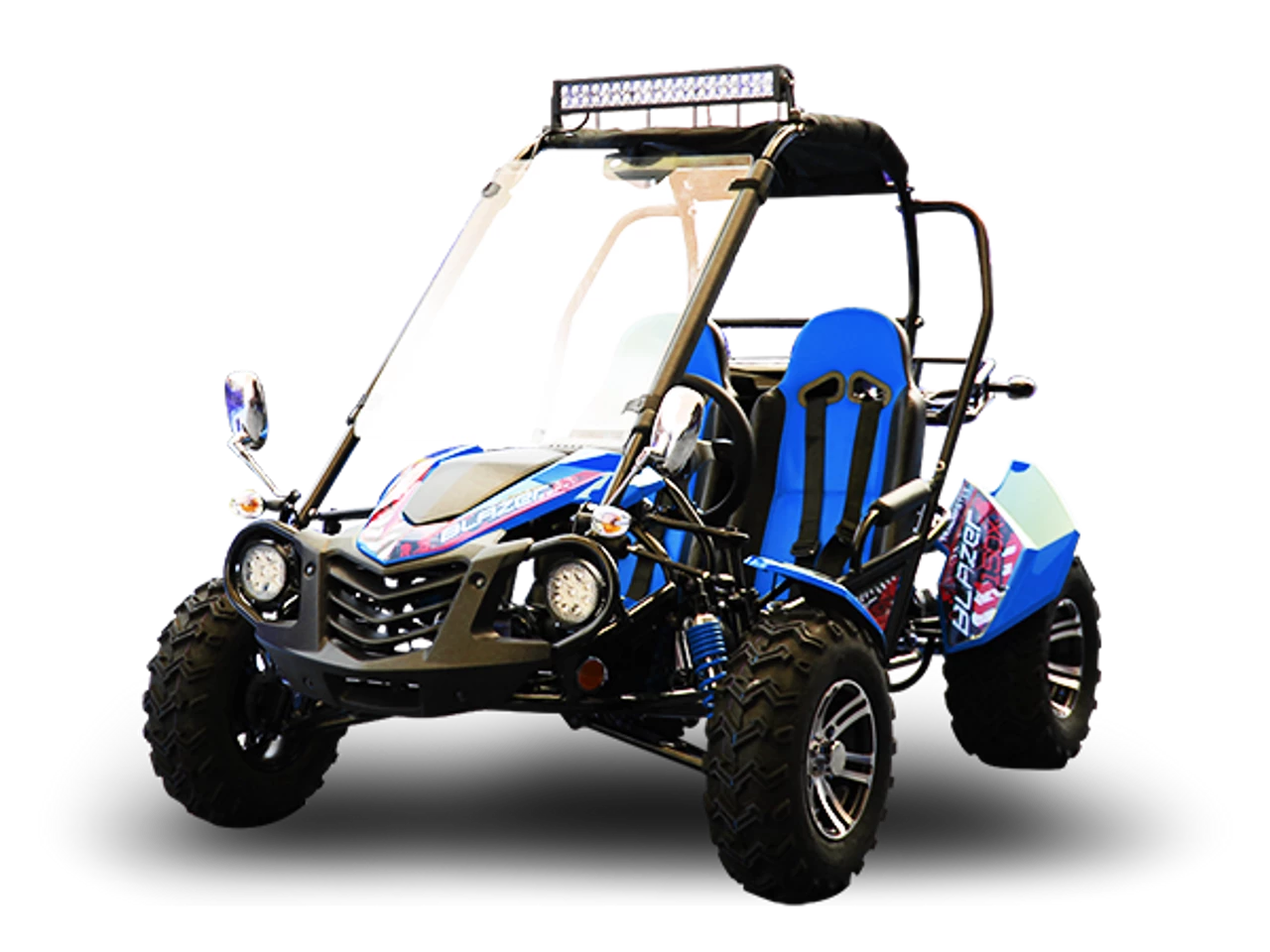

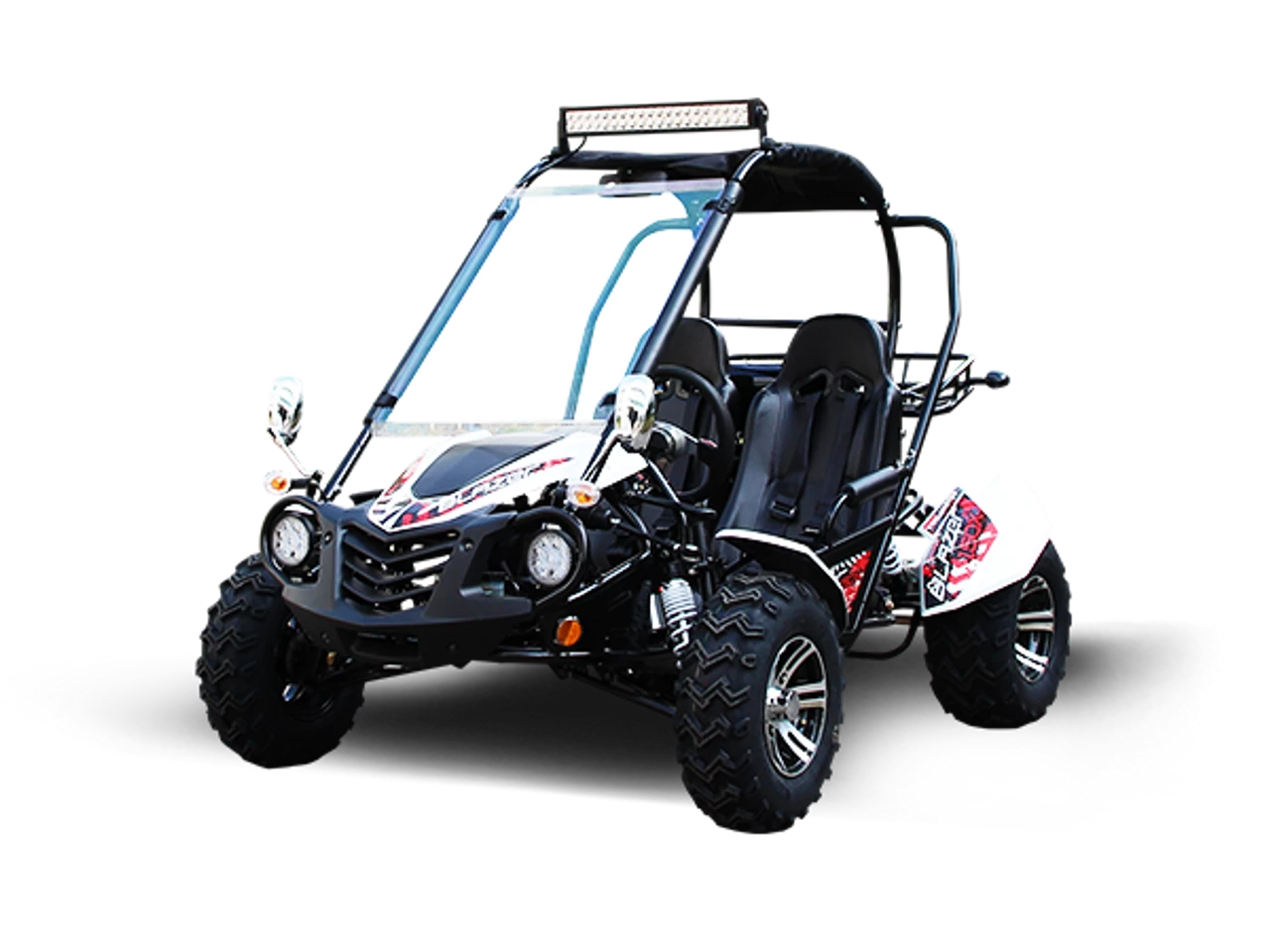

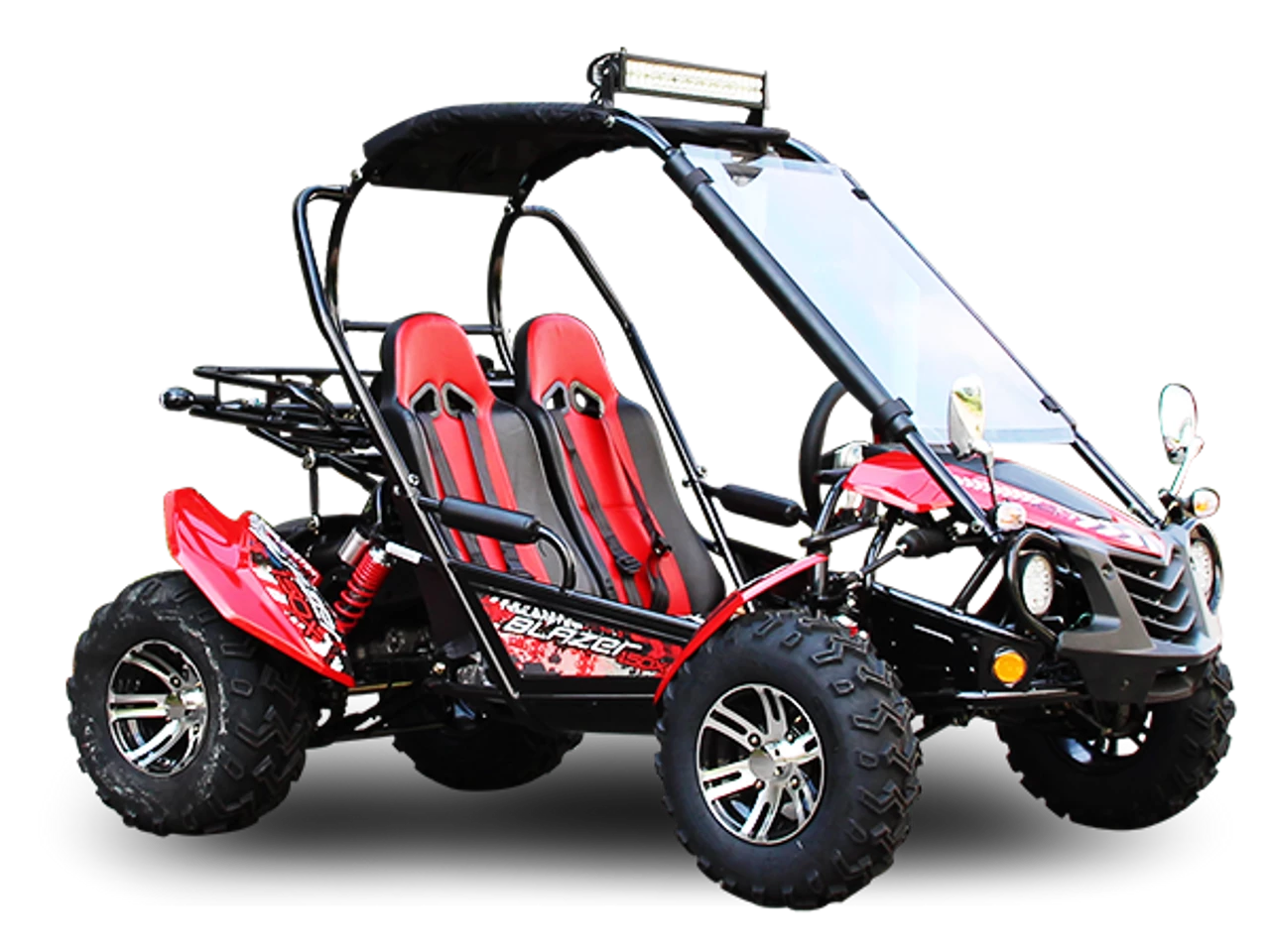

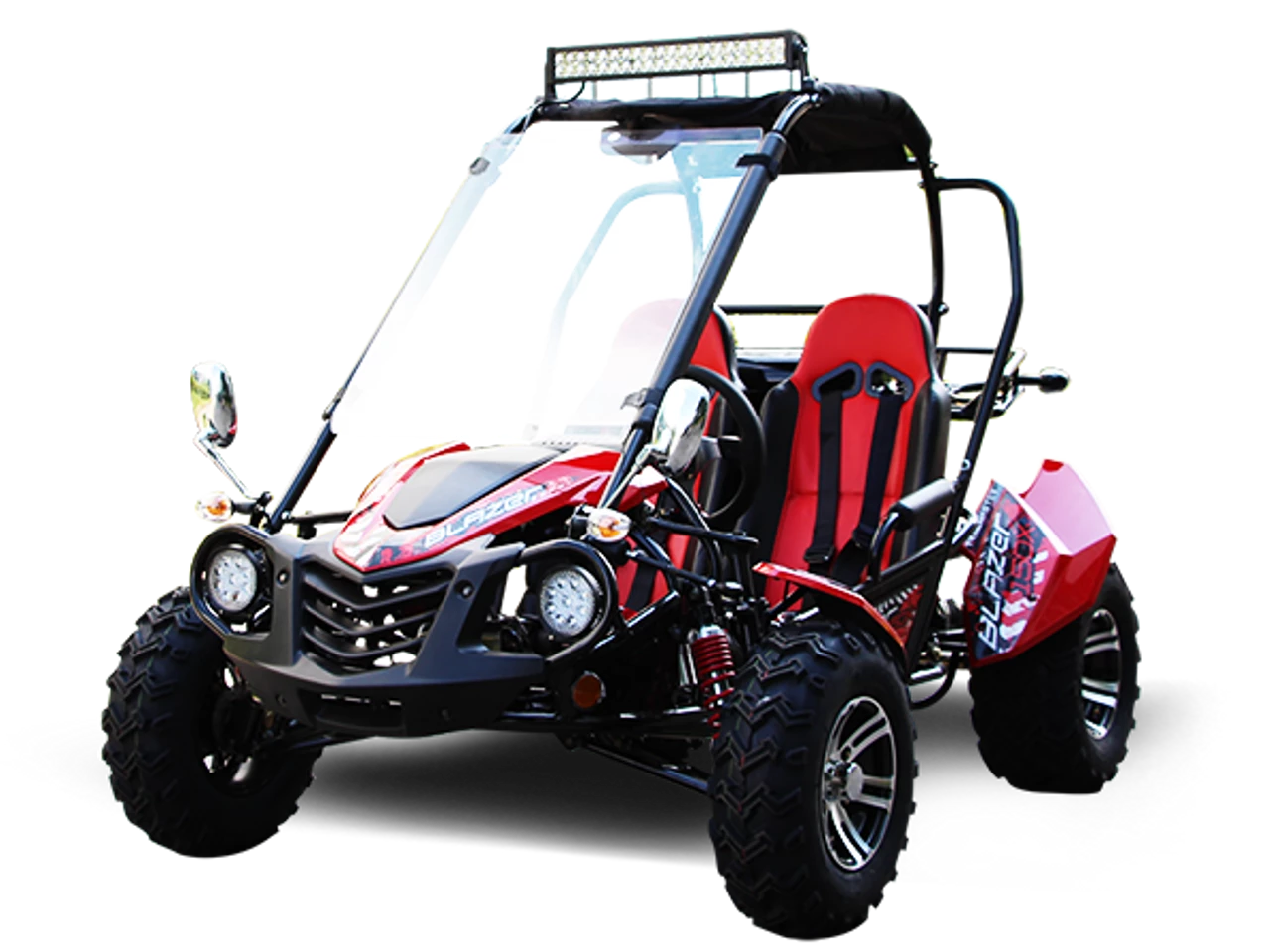

TrailMaster Blazer 200X Go-Kart

**Orders placed after 12/09/22 will deliver after Christmas**

The TrailMaster Blazer 200X is the perfect family Go-Kart. This stylish go kart is made of heavy duty framing that net weighs 500 lbs and has a max capacity of 661 lbs! Power comes from a 4-stroke, single cylinder, air cooled 168.9cc, 11.1hp GY6 technology engine mated to an automatic CVT clutch for a 43 mph top speed and excellent low-end torque. There’s enough horsepower to haul light loads on the rear utility rack or to pull light-duty trailers with the included ball hitch.

Driving is effortless and fun with rack-and-pinion steering, convenient reverse shifting, easily reachable, dash-mounted controls and dual sport bucket seats with 5 point harnesses. Alloy wheels with 22X8-10 front & 22X10-10 rear aggressive tread tires. This top of the line unit comes with Standard Premium items such as, Top LED light bar, 4MM high quality windshield, Nitrogen adjustable front and rear shock, Digital speedometer/odometer, Aluminum side mirrors, Turn signals, Sporting steering wheel, LED headlight, Bikini sunshade top, and adjustable driver seat: pedal to seat back adjustable from 41” to 46” fitting a passenger up to 6’2” in height.

If you choose to Ship Mostly Assembled, your units will show up partially assembled.  All you have left to do is attach the top roll cage, steering wheel, and battery.

*Only shipping to the Lower Contiguous 48 United States and excludes California.



Blazer 200X Key Features:

• Alloy wheels with 22X8-10 front and 22X10-10 rear aggressive tread tires

• Top LED light bar

• 4MM high quality windshield

• Nitrogen adjustable front and rear shock

• Upgraded racing seat belt

• Digital speedometer/odometer

• Aluminum side mirrors

• Turn signals

• Sporting steering wheel

• Stylish design

• Exciting graphics

• Five-point safety harness

• Electric start with kill switch

• Fully automatic with reverse, high performance 150cc GY6 engine with internal F-N-R

• Adjustable steering wheel

• Individual sports seats

• Polished stainless steel muffler

• LED headlight

• Bikini sunshade top

• Adjustable driver seat: pedal to seat back adjustable from 41” to 46”

• Central rear view mirror

• Rack and pinion steering wheel

• Front and rear hydraulic disc brake

• 4-point rear swing arm

• Parking brake

• 4-wheel stylish fenders

• Trailer hitch

• Large rear utility rack

• Large gas tank



Blazer 200X Specifications

Engine Information

• EPA certificated

• Engine type: 4-stroke, single cylinder, air cooled

• Displacement: 168.9cc

• Max HP: 11.1hp/8000rpm

• Max torque: 8.1 lb ft/6000rpm

• Bore x stroke: 2.4×2.28 inches

• Climbing ability: 12 degrees

• Ignition: C.D.I

• Starting system: Electric

• Battery: 12V 10Ah

• Carburetor brand: Deli (Vacuum film)

• Engine oil: SAE 15W-40



General Information

• Clutch: Automatic CTV with reverse

• Driveline / Driving wheel: Chain / Dual wheel drive

• Suspension F / R: Double A-arm / swing-arm

• Brakes, F / R: Both hydraulic brakes, Disc

• Tires, F / R: 20×7-8 / 21×10-10

• Wheel: Steel

• Fuel capacity: 2.25 gal

• Weight, G.W. / N.W.: 573 / 485 lbs

• Max load: 500 lbs



Dimension Information

• Wheelbase: 59 inches

• OA L x W x H: 85×53.1×57.5 inches

• Height to seat: 13.8 inches

• Min ground clearance: 6.7”

• Pedal to seat back distance: 41” to 46”
