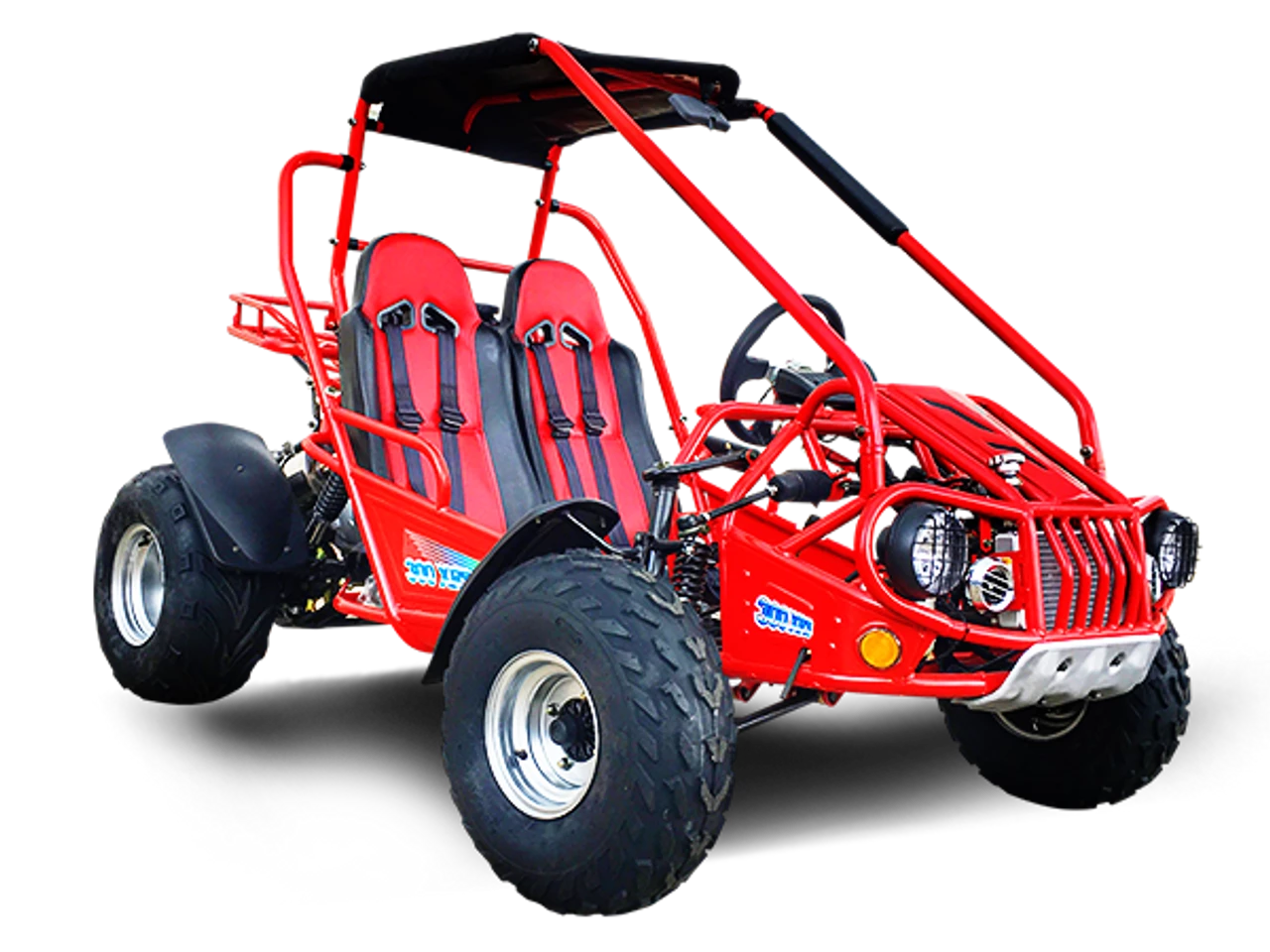

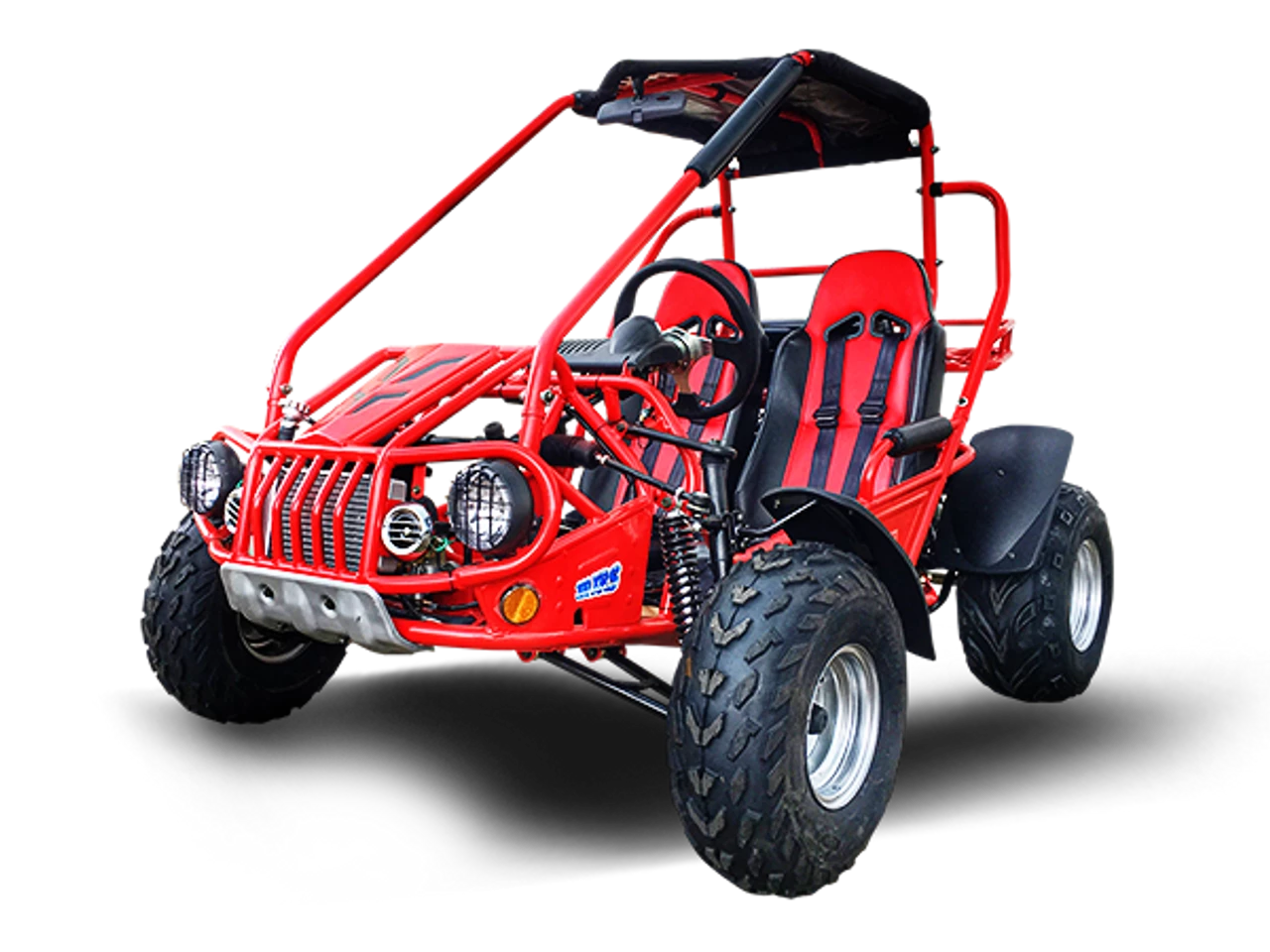

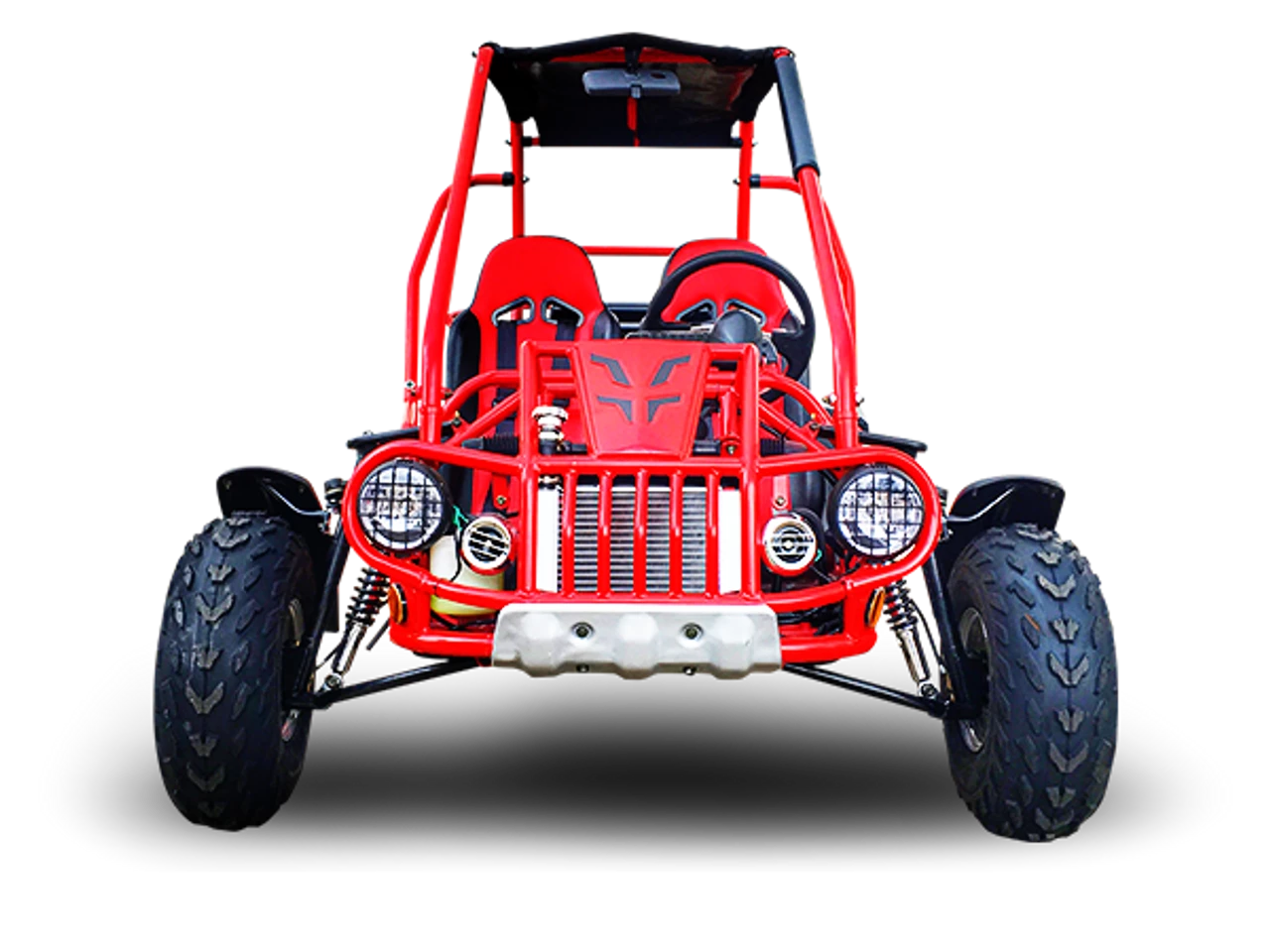

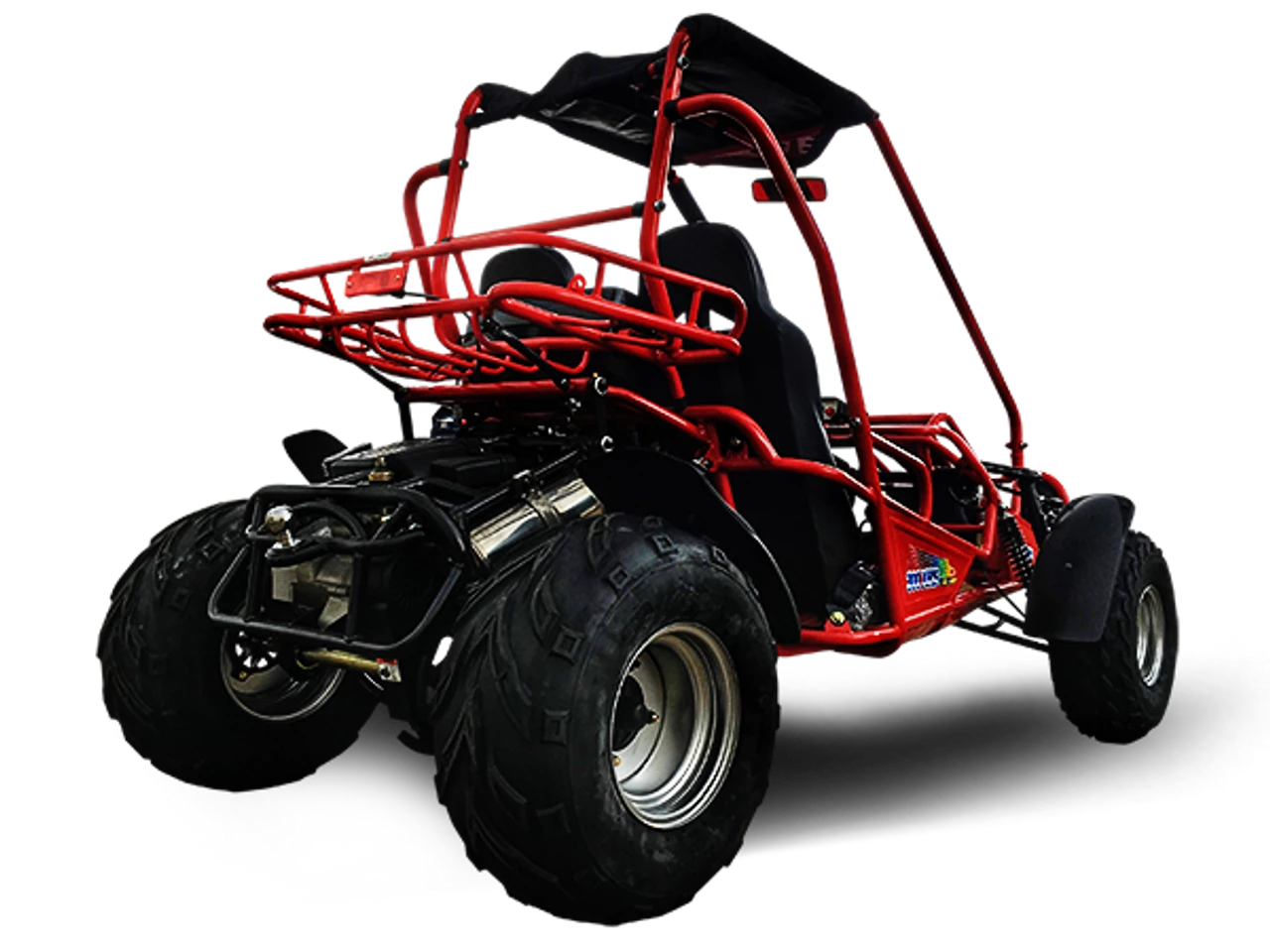

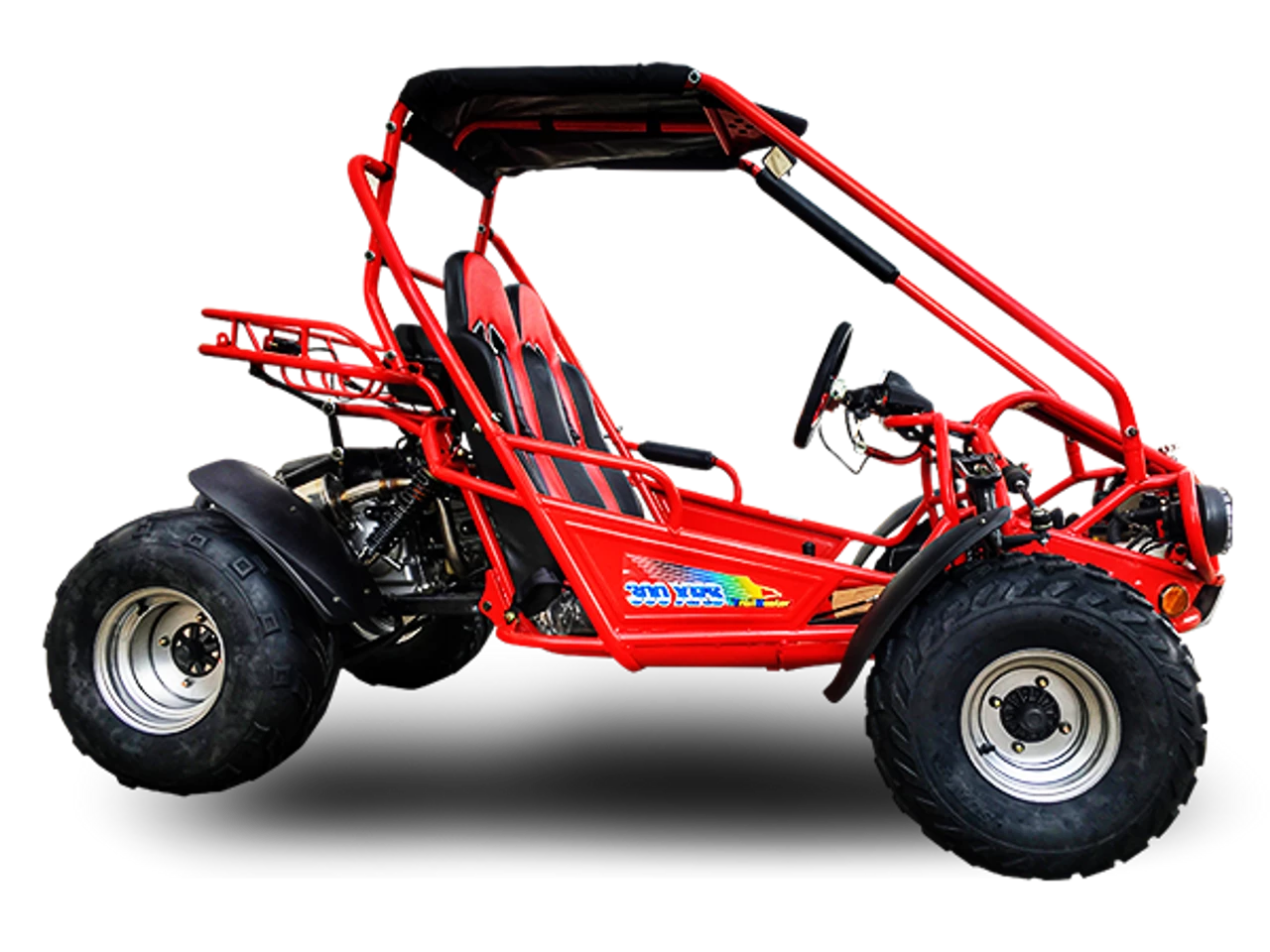

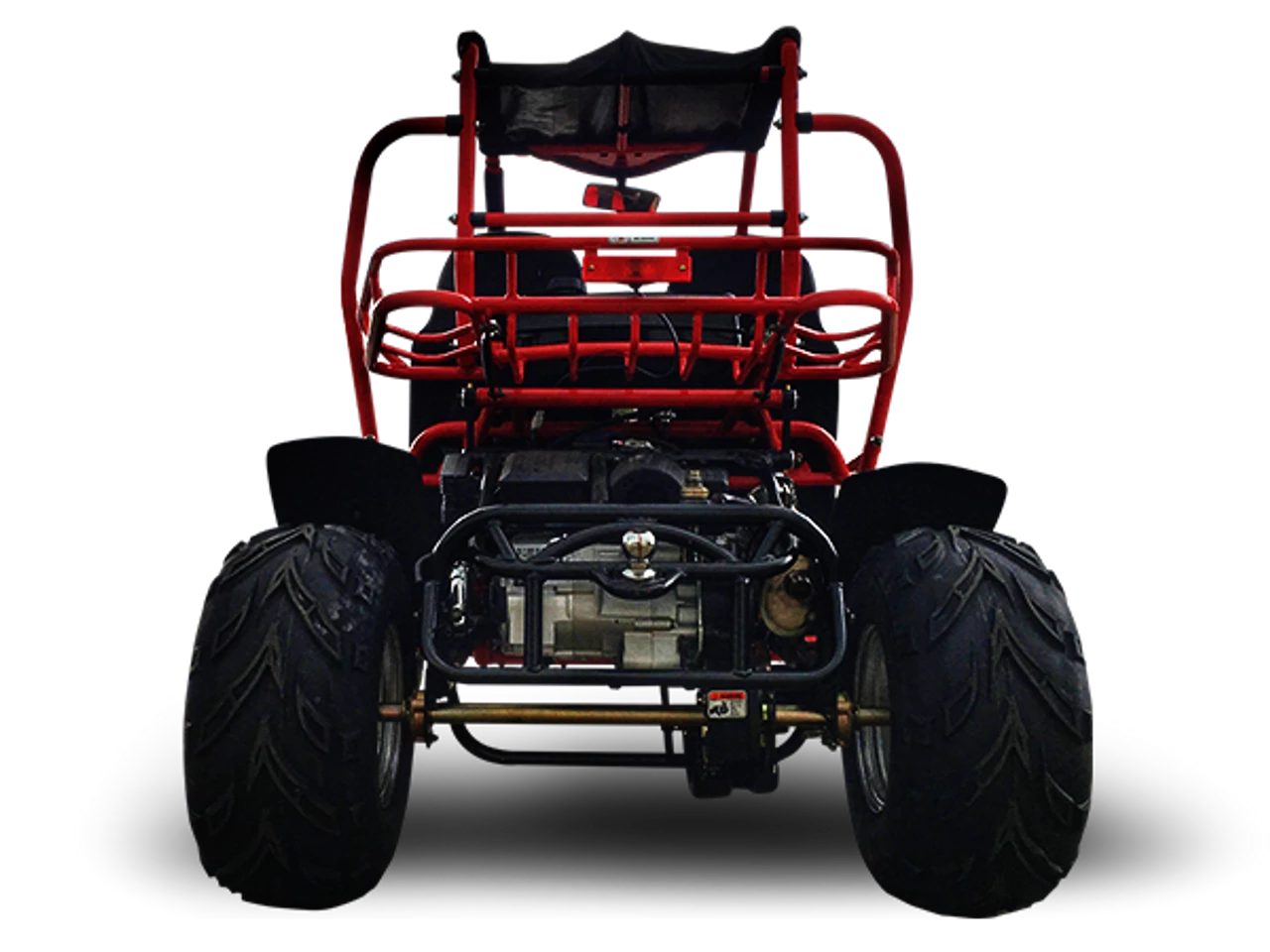

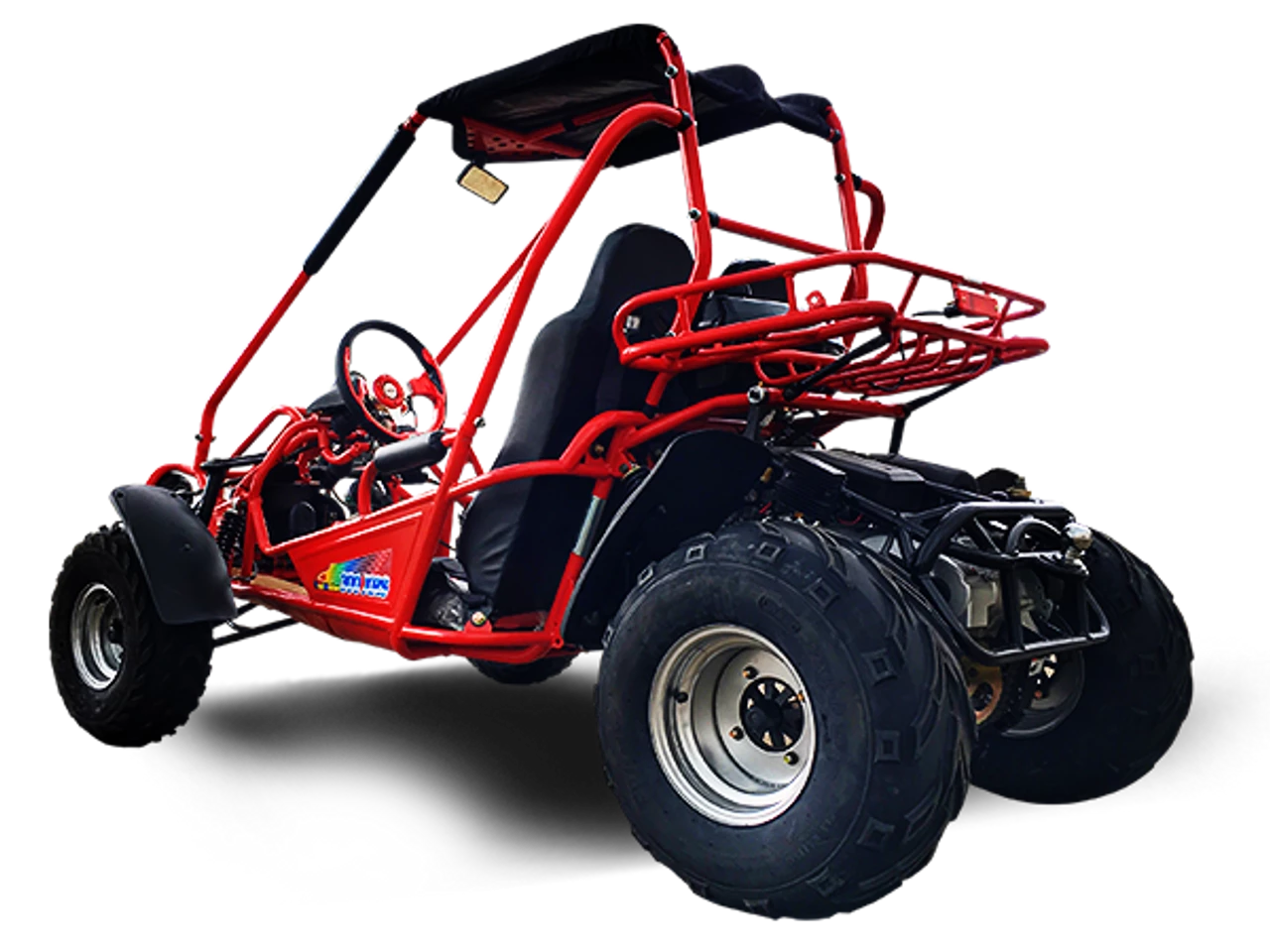

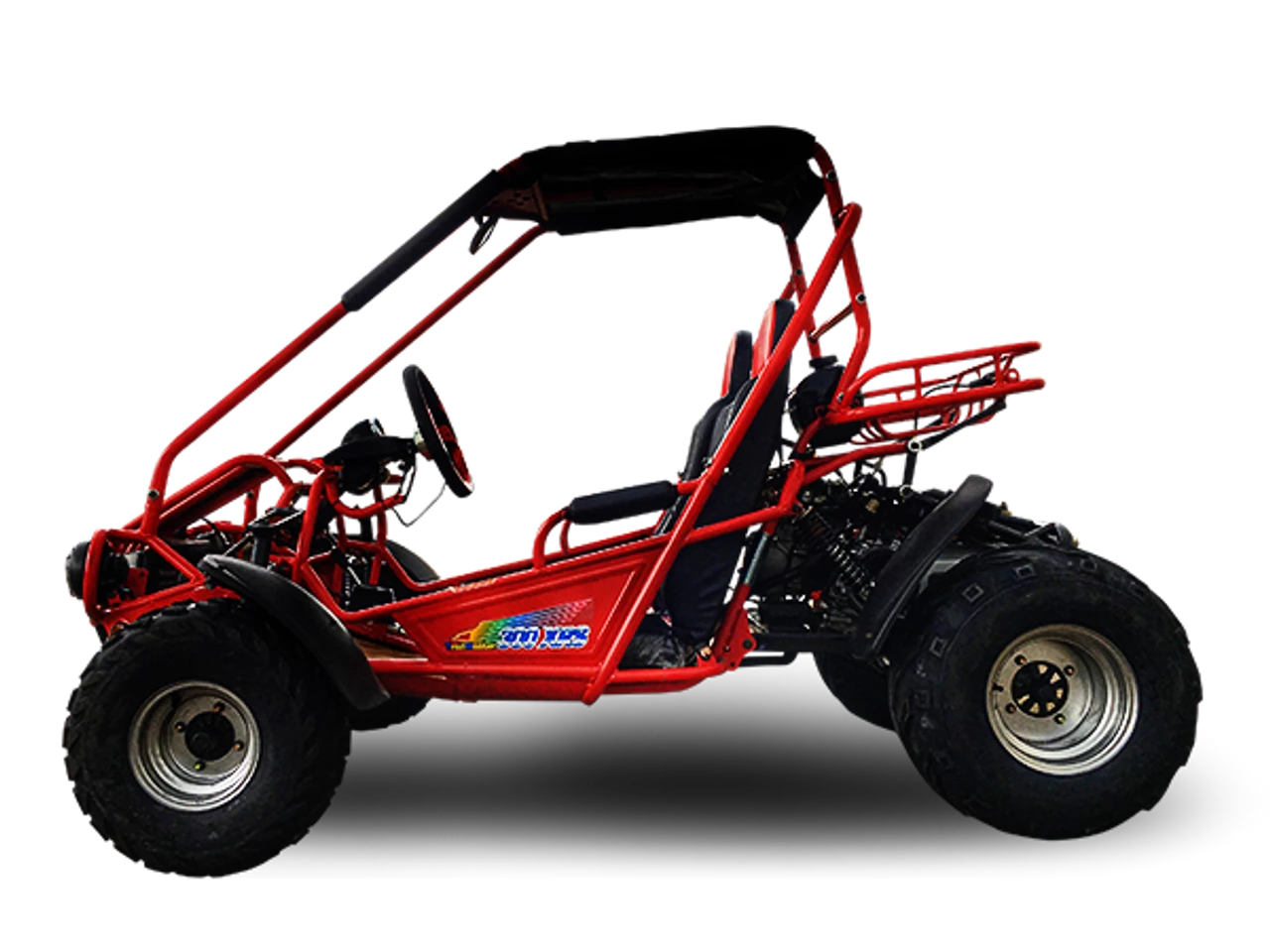

TrailMaster 200 XRS Go-Kart

If you’re looking for a go-kart that can do just about anything then you should check out the TrailMaster 200 XRS. This model is certainly a great way to enjoy some leisure time, but with a weight limit of 500 pounds and a built on hitch and storage basket, you’ll be able to do so much more with this vehicle.

The 200 XRS is made with speed in mind and can take you up to 43 Mph, which is much faster than many other models. This speed increase is largely due to the fantastic single cylinder engine and CVT clutch that allows for ten horse power. Of course, the optimized frame of this model also allows for a reduced turning radius so you can have a little extra fun while working or creaming your friends in a race.

The design of the 200 XRS features cozy bucket seats that will adjust to help the driver maintain a comfortable driving position. Each seat contains a seat belt, which is only one of the amazing safety features this model has. The 150 XRS also boasts durable headlights, tail lights and hydraulic brakes ( front and rear) that will ensure the driver has complete control day or night. Your model will also include a 2.25 gallon fuel tank, electric starting system and dual wheel drive that will ensure your go-kart time won’t just be a whole lot of fun, but will improve your skills while you spend hours out in the fields.

* If you choose the assembled before shipping option the kart will be delivered with everything assembled except for the roll cage and the battery.

TrailMaster Go Karts only ship to the lower 48 states in the US.

Warranty
Yes most karts come with a limited warranty against manufacture defects. These are defects from the manufacturer not due to accidents, abuse or lack of maintenance. Go-karts come with a parts only warranty( there is no labor warranty).

Final assembly and maintenance does require some basic mechanical knowledge. Before purchasing it is wise to consider your abilities to perform the needed maintenance and repairs that will be required.

Parts Breakdown

Set Up

Circuit

<align=”left”> Engine Information </align=”left”>
EPA certificated
Engine type:	4-stroke, single cylinder, air cooled
Displacement:	150cc
Max HP:	8.2hp/7500rpm
Max torque:	7 lb ft/6000rpm
Bore x stroke:	2.26 x 2.28 inches
Max speed:	43.5mph
Climbing ability:	12 degrees
Ignition:	C.D.I
Starting system:	Electric
Battery:	12V 10Ah
Carburetor brand:	Deli (Vacuum film)
Engine oil:	SAE 15W-40
General Information
Clutch:	Automatic CTV with reverse
Driveline / Driving wheel:	Chain / Dual wheel drive
Suspension, F / R:	Double A-arm / swing-arm
Brakes, F / R:	Both hydraulic brakes, Disc
Tires, F / R:	20×7-8 / 22×10-10
Fuel capacity:	2.25 gal
Weight, G.W. / N.W.:	573 / 485 lbs
Max load:	500 lbs
Dimension Information
Wheelbase:	59 inches
OA L x W x H:	85×53.1×57.5 inches
Height to seat:	13.8 inches
Min ground clearance:	6.7 inches
