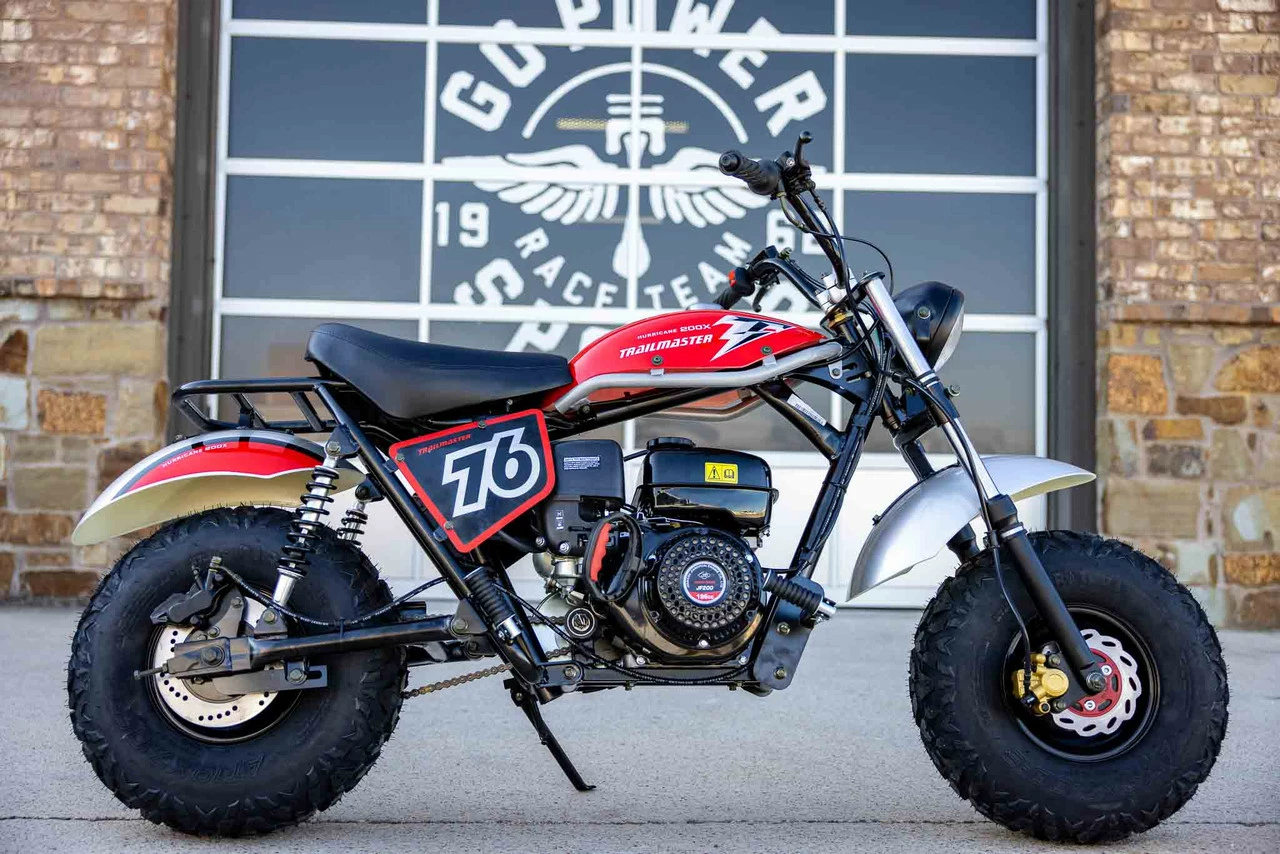

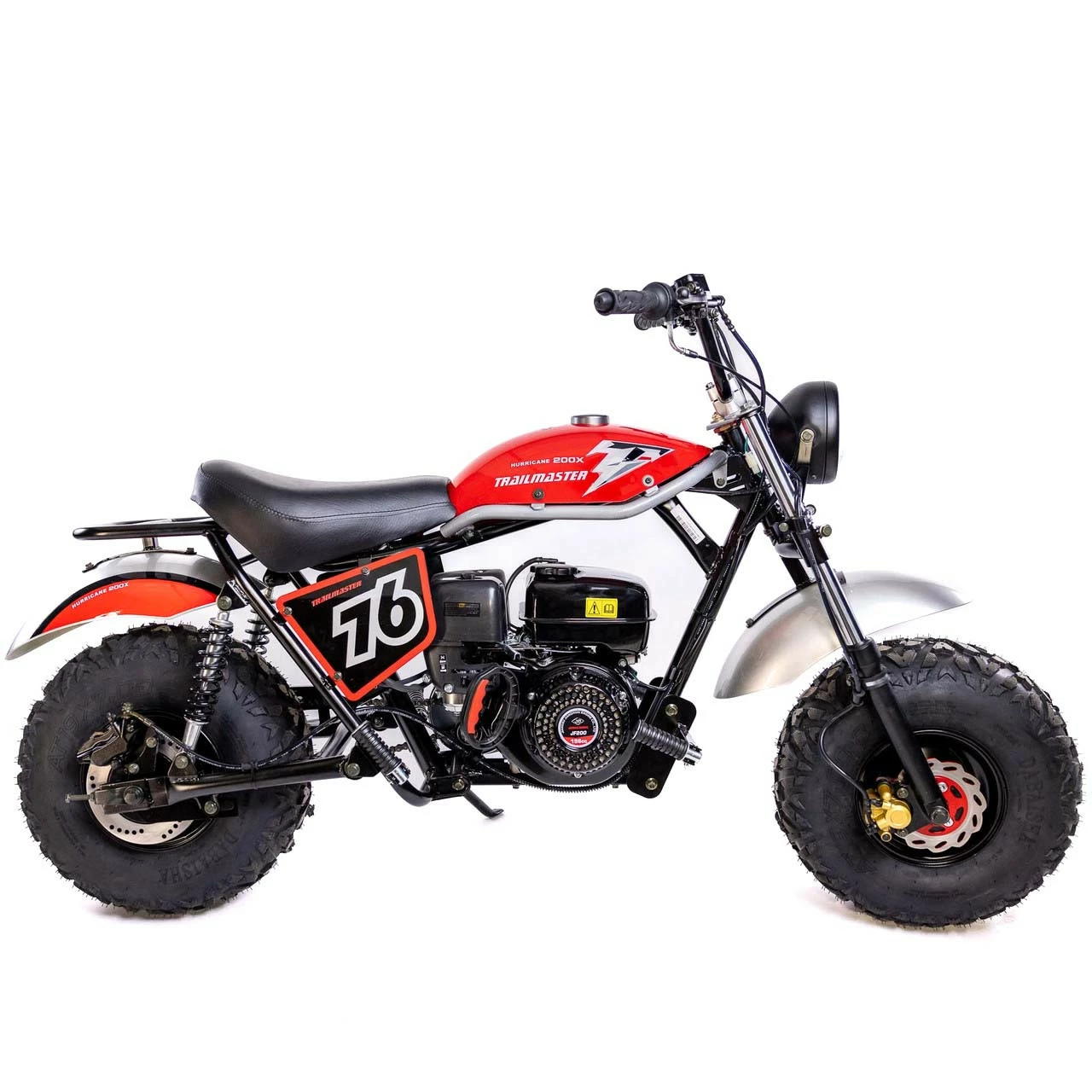

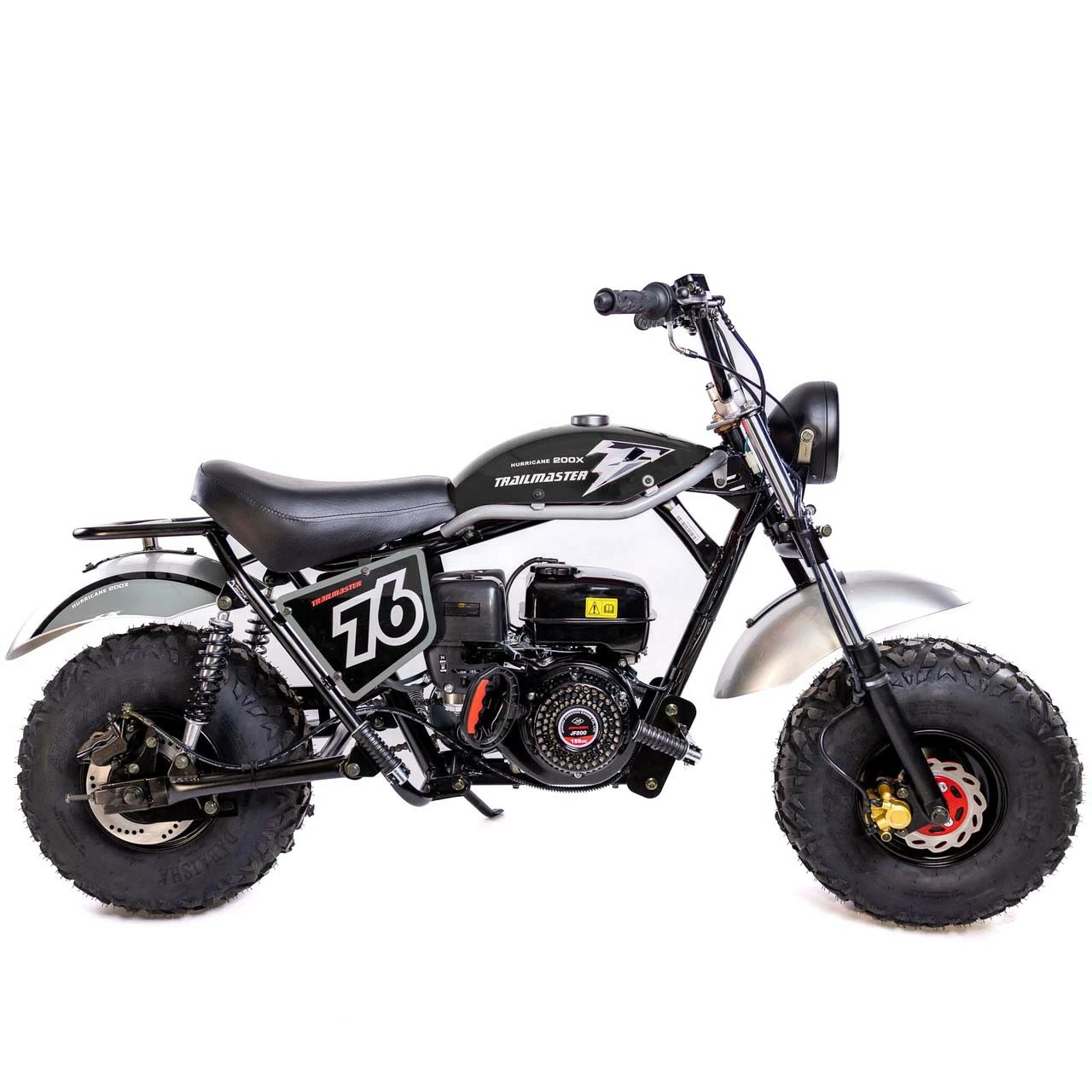

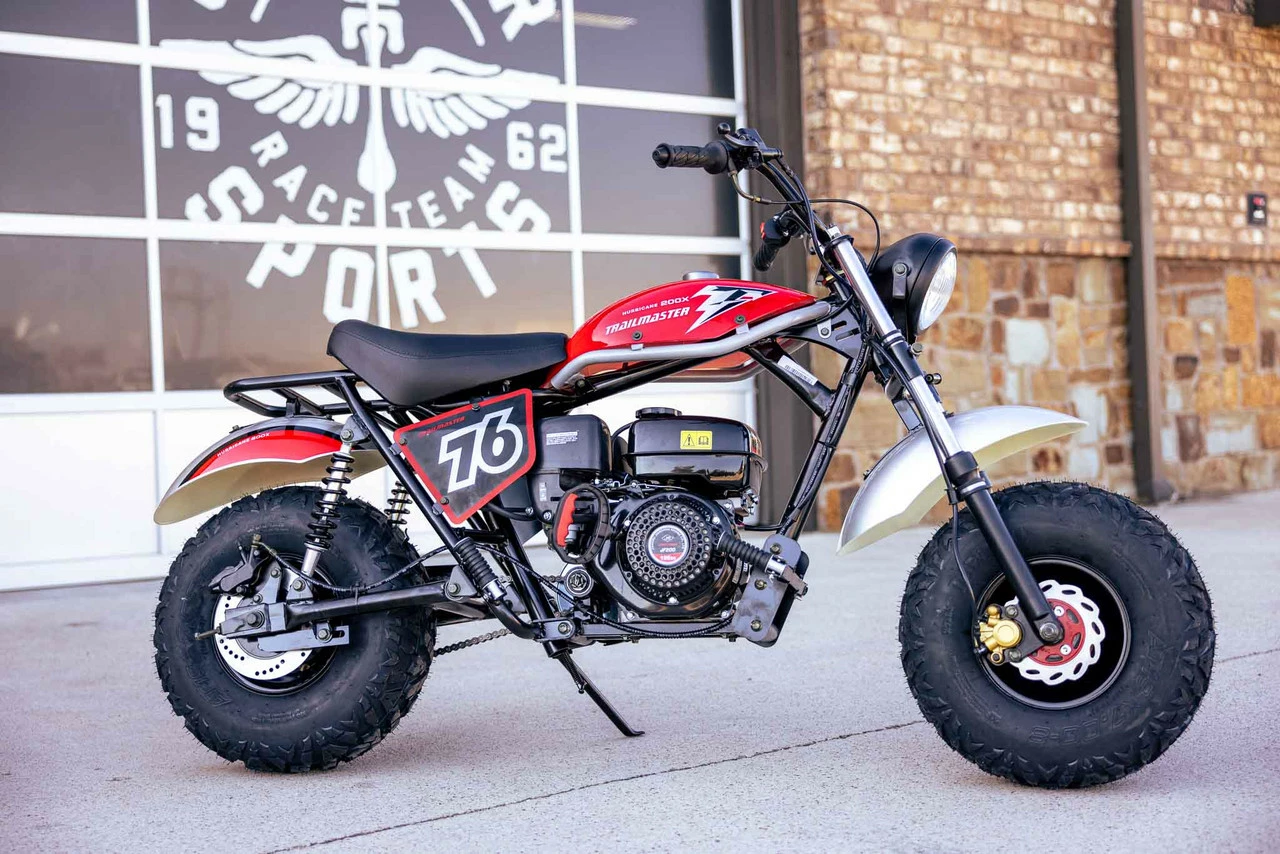

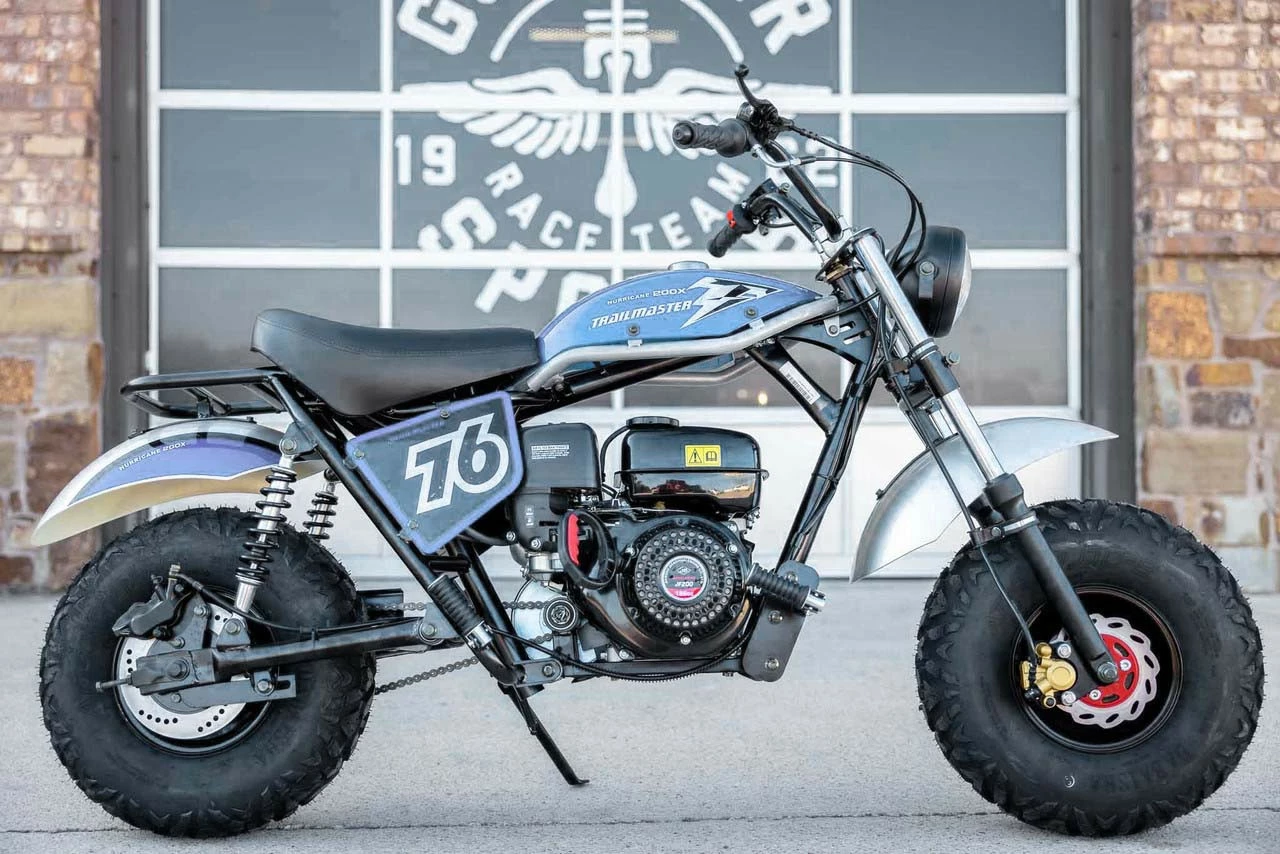

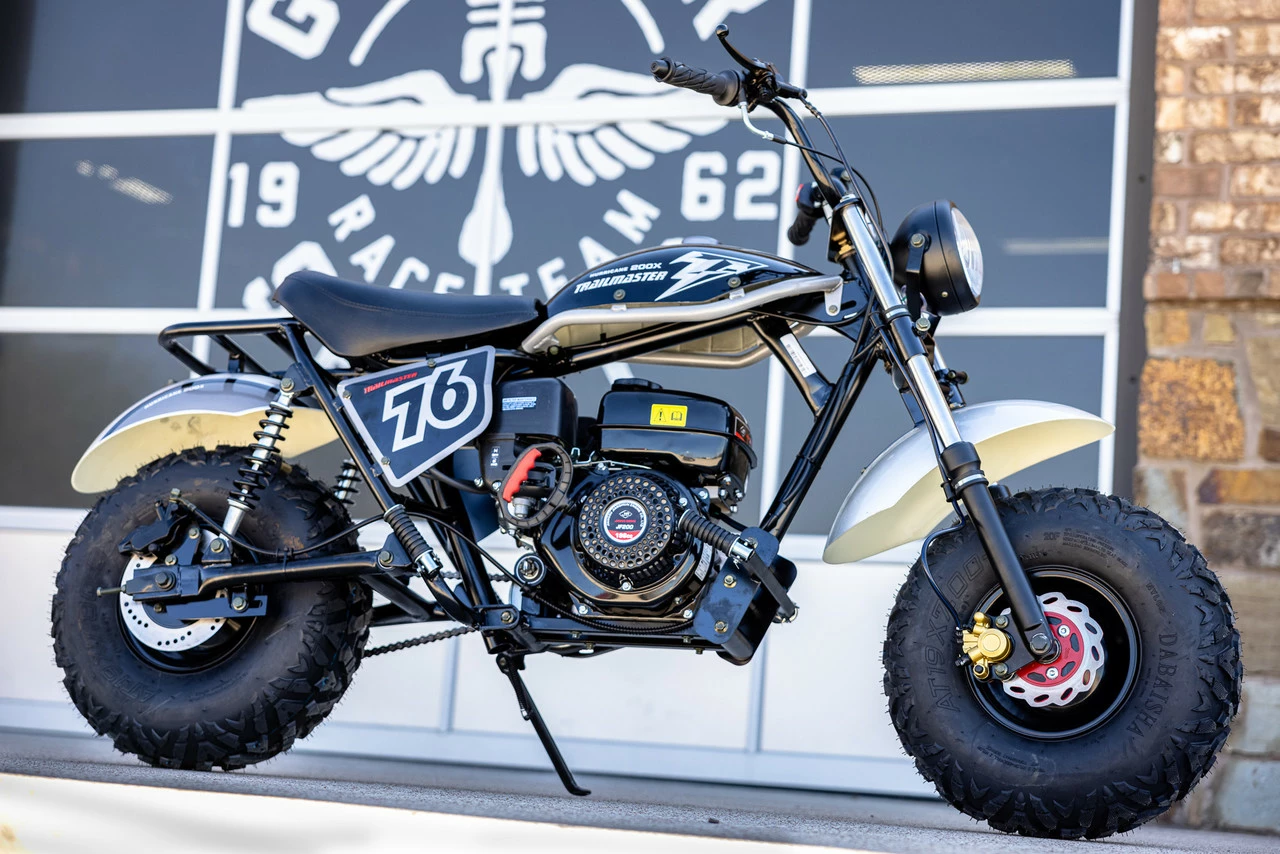

TrailMaster Hurricane 200X Minibike

Check out the Hurricane 200X Minibike from TrailMaster. The Hurricane 200X is an upgraded version of the TrailMaster MB200 Minibike that has ruled the market for years. Same frame but with more added features. Hydraulic Front and Rear Brakes give the rider complete control with superior stopping power. The upgraded, aggressive-style tires will surely help you climb over all terrain. The sleek design will turn heads as you blow past the competition.

Main Features:

• Powerful 196cc OHV Engine

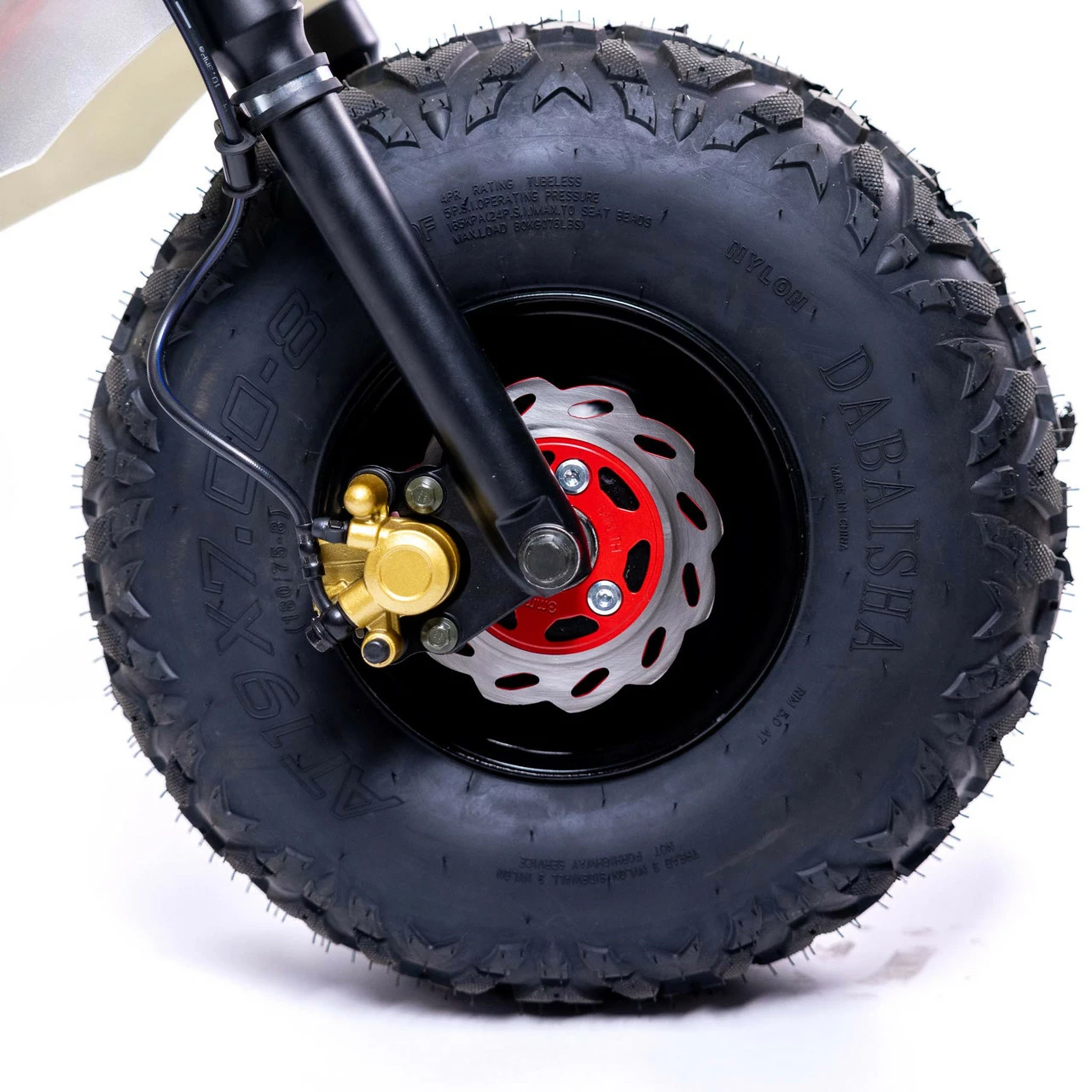

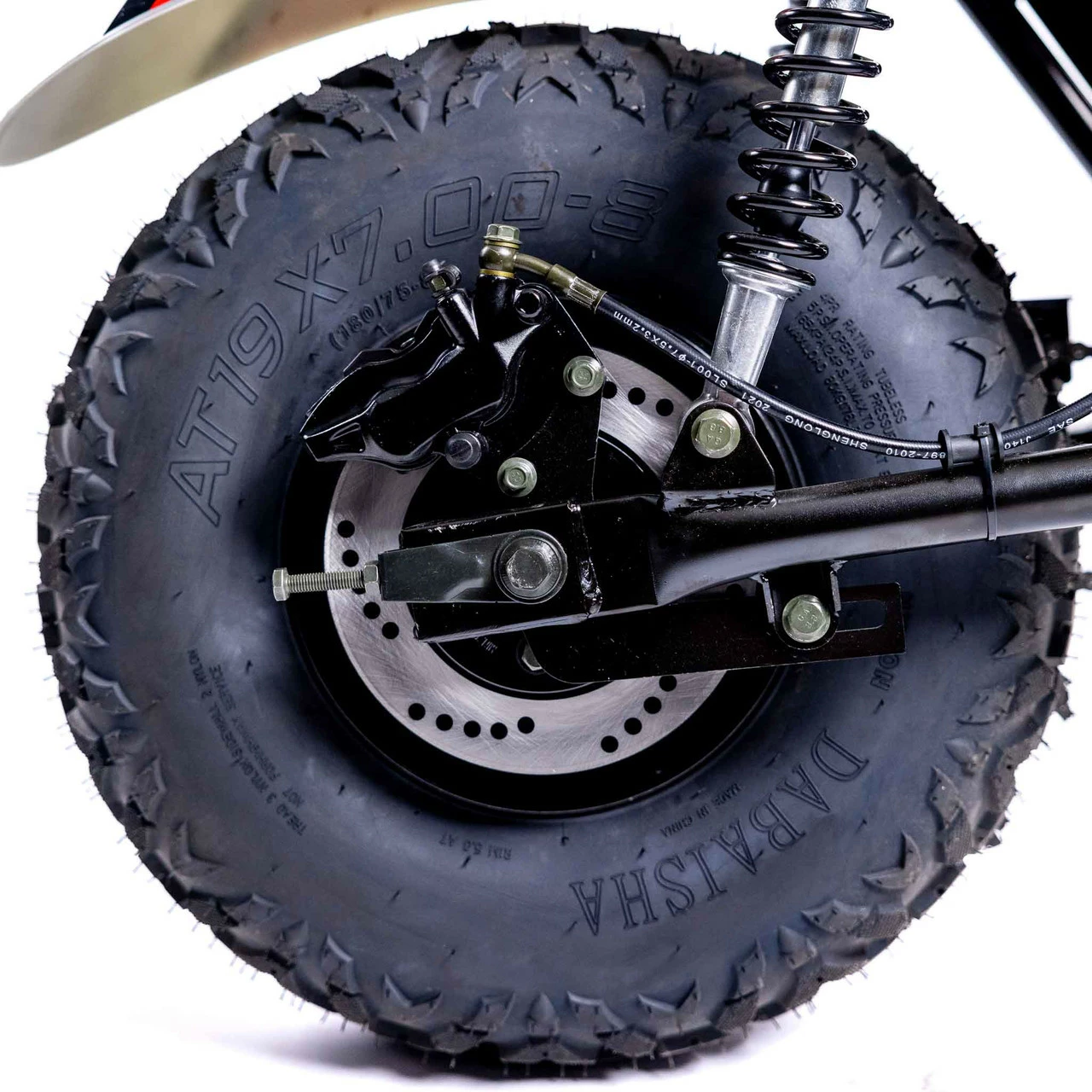

• Front and Rear Hydraulic Brakes
• Front and Rear Suspension
• Torque Converter
• Big 19″ Off-Road Tires
• Wide, Comfortable Seat
• Headlight



Hurricane 200X Specs:

• Engine Displacement 196cc
• Starting: Recoil Cord
• Spark Plug Type: Torch – F7RTC
• Cooling: Air cooled
• Ignition Type T.C.I
• Cylinder head config.: OHV
• Number of Cylinder: Single
• Combustion Cycle: 4-stroke
• Bore and Stroke: 68 x 54mm
• Compression Ratio: 8.5:1
• Rated Power 3.8kw @ 3600rpm
• Rated Torque 10Nm @ 2500rpm



General Information:

• Top Speed 25-35mph
• Lights: Front Headlight Continuously on
• Drive System Type: Chain Drive
• Transmission : CVT
• 50T Rear Sprocket

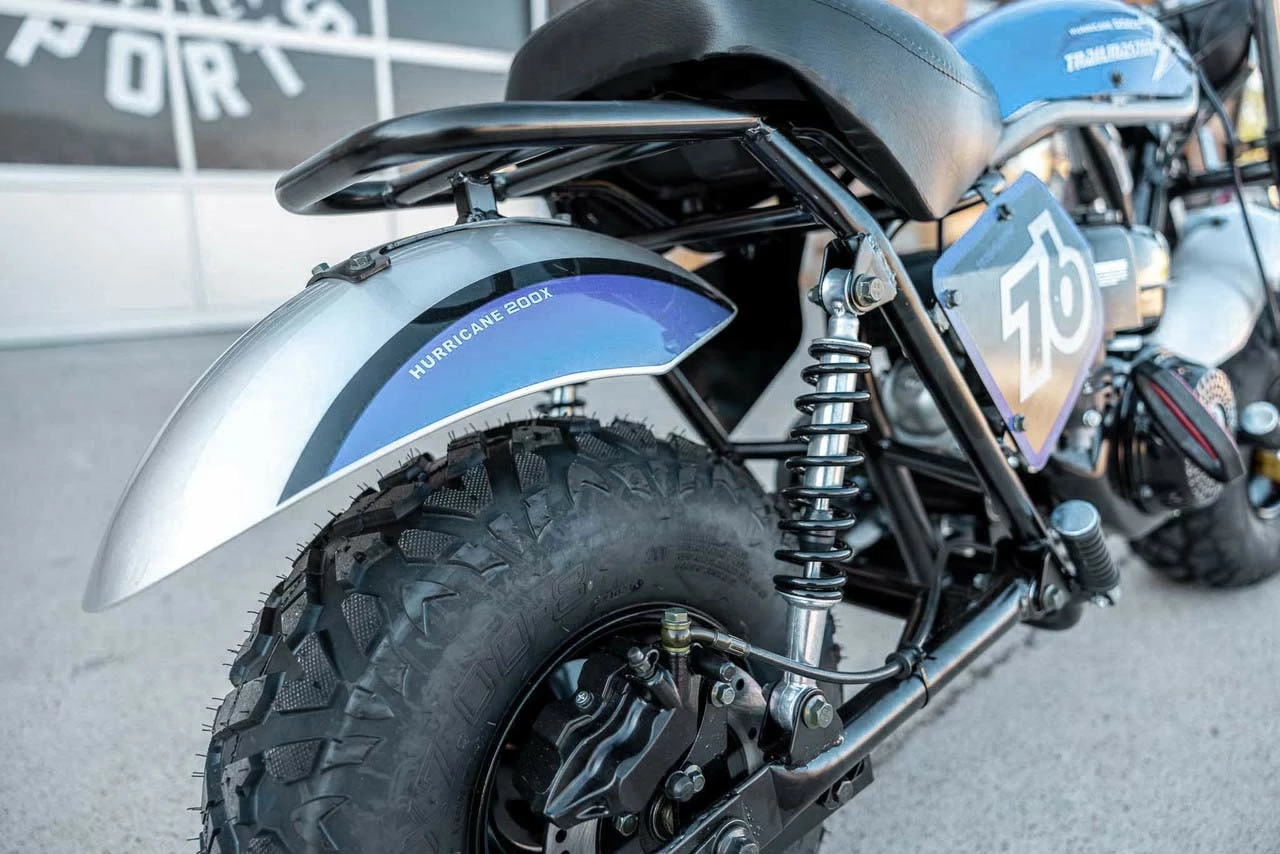

• Suspension: Front Hydraulic shock; Rear Shock;
• Front and Rear Disc Brakes
• Front Tire Size AT19x7-8: Rear Tire Size AT19x7-8
• Gas Tank Capacity 1 Gal
• Fuel type: Unleaded 87 octane or higher
• Oil Capacity .53qt. (.5L); Oil Type SAE 10W-40



Dimensions and Weights:

• Crate size: 60″ X 18″ X 30″
• LXWXH: 66.14″ X 31.5″ X 38.58″ (1680mmX800mmX980mm)
• Wheelbase 45.28in. (1150mm)
• Vehicle Wt. 167.5lbs
• Gross Wt.: 200lbs
• Weight Cap. 200lbs
• Ground Clearance 6.7in (170mm)

• Replacement Wheel Bearings: 6202-2R
• Replacement Jackshaft Bearings: 6004
• Replacement TAV Belt: 725
• Replacement Front Break Pads
• Replacement Rear Break Pads



Shipping is only available to Contiguous Lower 48 States. California residents may only purchase these units for Private Property Use Only and will not be eligible for licensing. These minibikes are not CARB/EPA Compliant.

Average shipping lead times are a week to a week and a half. There is no expedited shipping available for this mini bike.

These Minibike kits may come with some scratches that are beyond our control.  If you received damaged parts or parts missing, please email our sales department with photos so we can asses the situation.

Warranty: Yes, most karts come with a limited warranty against manufacture defects. These are defects from the manufacturer not due to accidents, abuse or lack of maintenance. Minibike come with a parts only warranty (no labor warranty).

Assembly is required.  Final assembly and maintenance does require some basic mechanical knowledge. Before purchasing, it is wise to consider your abilities to perform the needed maintenance and repairs that will be required.

There are no returns on this minibike.
