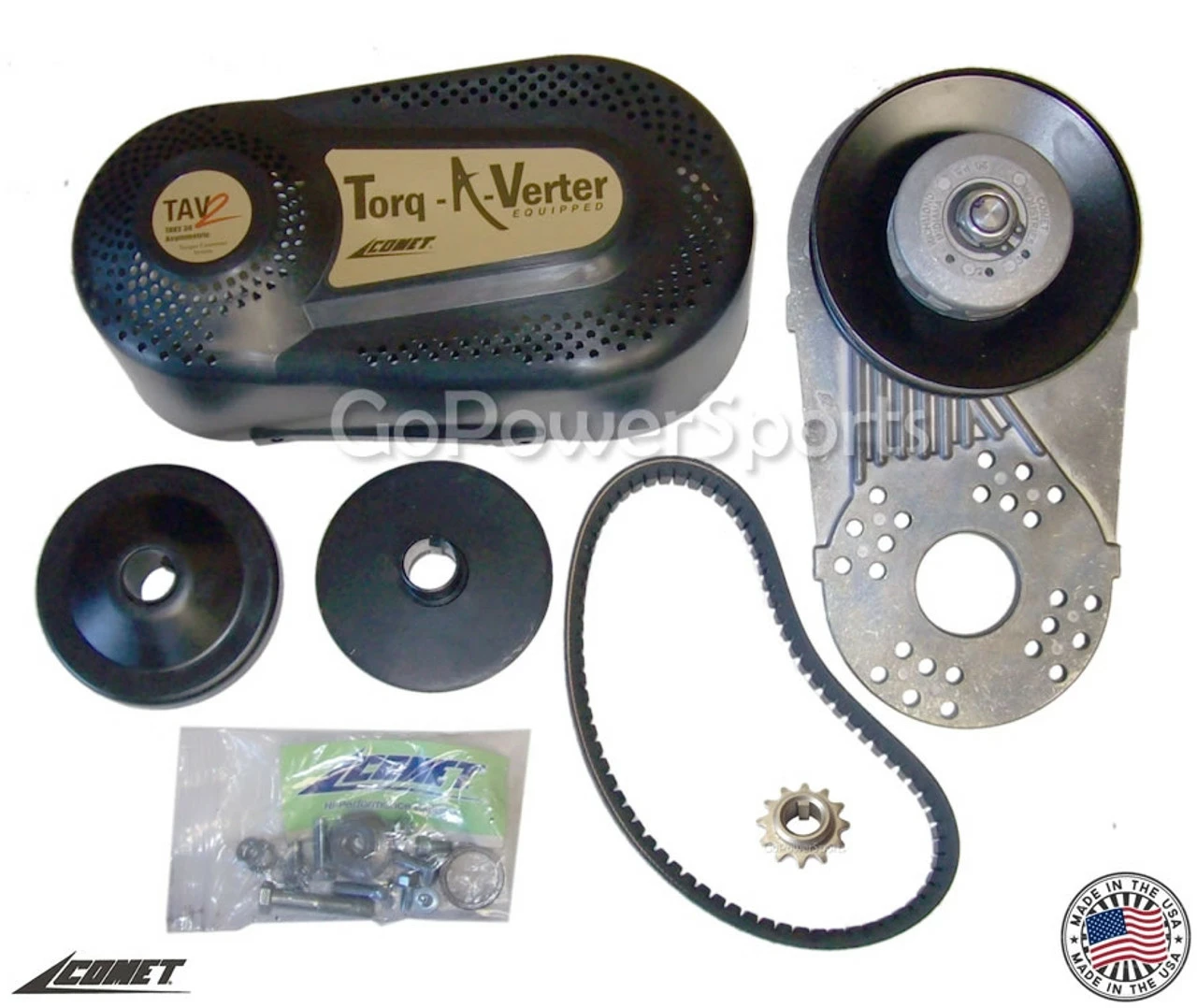

Comet TAV 30-75 Torq-A-Verter, 12t Spkt For #35 Chain

This is an asymmetrical type torque converter system which means the sheave faces are non-symmetrical. They have different angles. In this case, the movable sheave face is 18° while the stationary sheave face is 21/2° for a collective angle of 20 1/2°. Here are some reasons for selecting the asymmetrical concept: The Asymmetric concept operates on an in-line principal with the torque sensing cam in an outboard attitude. Only this system is designed to operate this way, thus providing the proper alignment for the final drive chain to be on the same side of the vehicle as the P.T.O. This offers some very significant advantages to mounting requirements in many cases. The asymmetric concept, having the 18° angle on one side requires less sheave face travel to lift the belt to larger, comparable pitch diameters of the symmetrical system. This makes it possible to force the belt to a diameter within the drive clutch (at high RPM) that exceeds the usual 1:1 ratio of standard systems. The TAV can actually attain an .90:1 or 10% overdrive.
